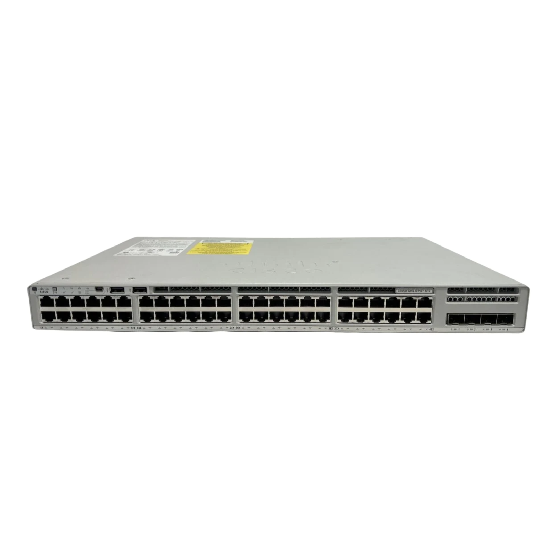

CISCO Catalyst 9200L 48-port data only 4 x 1G Network Advantage with DNA license # C9200L-48T-4G-A
Sale Price: US$ 1,497.40 (66.0% OFF)
List Price:
US$ 4,404.00
Condition: Brand New Sealed
Delivery Time: In Stock
Cisco Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT simplified.
As foundational building blocks for the Cisco Digital Network Architecture, Catalyst 9200 Series switches help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation and human expertise that no other vendor can deliver regardless of where you are in the intent-based networking journey.
Catalyst 9200 Series switches provide security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly. Combine that with open APIs of Cisco IOS XE and programmability of the UADP ASIC technology, Catalyst 9200 Series switches give you what you need now with investment protection on future innovations.
With full PoE+ capability, power and fan redundancy, stacking bandwidth up to 160 Gbps, modular uplinks, Layer 3 feature support, and cold patching, Catalyst 9200 Series switches are the industry’s unparalleled solution with differentiated resiliency and progressive architecture for cost-effective branch-office access. Catalyst 9200 Series switches also provide operational choice of Cisco DNA Center, or cloud monitoring for Catalyst on Meraki dashboard.
Switch models and configurations
Table 1. Catalyst 9200 Series models and configurations
|
Models |
FRU Power Supply |
FRU Fans |
Modular Uplinks |
Stacking Bandwidth Support |
SD-Access Support1 |
|
✓ |
✓ |
✓ |
160 Gbps |
Yes (32 Virtual Networks)2 |
|
|
Modular uplink models (C9200 SKUs) |
✓ |
✓ |
✓ |
160 Gbps |
Yes (4 Virtual Networks) |
|
Fixed uplink Models (C9200L SKUs) |
✓ |
✗ |
✗ |
80 Gbps |
Limited (1 Virtual Network) |
|
Fixed internal power supply |
Fanless |
✗ |
✗ |
Yes (16 Virtual Networks) |
The Cisco Catalyst 9200 Series is made up of modular (C9200), fixed (C9200L) and compact (C9200CX) switch models.
Cisco Catalyst 9200 Series switches
Table 2. Cisco Catalyst 9200 Series Switch configurations
|
Switch model |
Downlinks total 10/100/1000 or PoE+ copper ports |
Uplink configuration |
Default primary power supply |
Fans |
|
Modular uplink models |
||||
|
C9200-24T |
24 ports data |
Modular uplink options |
PWR-C6-125WAC |
FRU redundant |
|
C9200-24P |
24 ports full PoE+ |
Modular uplink options |
PWR-C6-600WAC |
FRU redundant |
|
C9200-24PB |
24 ports full PoE+ |
Modular uplink options |
PWR-C6-600WAC |
FRU redundant |
|
C9200-24PXG |
24 ports full PoE+ (8 mGig ports up to 10G, 16 ports up to 1G) |
Modular uplink options |
PWR-C6-600WAC |
FRU redundant |
|
C9200-48T |
48 ports data |
Modular uplink options |
PWR-C6-125WAC |
FRU redundant |
|
C9200-48P |
48 ports full PoE+ |
Modular uplink options |
PWR-C6-1KWAC |
FRU redundant |
|
C9200-48PL |
48 Ports partial PoE+ |
Modular uplink options |
PWR-C6-600WAC |
FRU redundant |
|
C9200-48PB |
48 ports full PoE+ |
Modular uplink options |
PWR-C6-1KWAC |
FRU redundant |
|
C9200-48PXG |
48 ports full PoE+ (8 mGig ports up to 10G, 40 ports up to 1G) |
Modular uplink options |
PWR-C6-1KWAC |
FRU redundant |
|
Fixed uplink models |
||||
|
C9200L-24T-4G |
24 ports data |
4x 1G fixed uplinks |
PWR-C5-125WAC |
Fixed redundant |
|
C9200L-24P-4G |
24 ports full PoE+ |
4x 1G fixed uplinks |
PWR-C5-600WAC |
Fixed redundant |
|
C9200L-48T-4G |
48 ports data |
4x 1G fixed uplinks |
PWR-C5-125WAC |
Fixed redundant |
|
C9200L-48P-4G |
48 ports full POE+ |
4x 1G fixed uplinks |
PWR-C5-1KWAC |
Fixed redundant |
|
C9200L-48PL-4G |
48 Ports partial PoE+ |
4X 1G Fixed uplinks |
PWR-C5-600WAC |
Fixed redundant |
|
C9200L-24T-4X |
24 ports data |
4x 1/10G fixed uplinks |
PWR-C5-125WAC |
Fixed redundant |
|
C9200L-24P-4X |
24 ports full PoE+ |
4x 1/10G fixed uplinks |
PWR-C5-600WAC |
Fixed redundant |
|
C9200L-48T-4X |
48 ports data |
4x 1/10G fixed uplinks |
PWR-C5-125WAC |
Fixed redundant |
|
C9200L-48P-4X |
48 ports full PoE+ |
4x 1/10G fixed uplinks |
PWR-C5-1KWAC |
Fixed redundant |
|
C9200L-48PL-4X |
48 Port partial PoE+ |
4X 1/10G Fixed Uplinks |
PWR-C5-600WAC |
Fixed redundant |
|
C9200L-24PXG-4X |
24 ports full PoE+ (8 mGig ports up to 10G, 16 ports up to 1G) |
4x 1/10G fixed uplinks |
PWR-C5-600WAC |
Fixed redundant |
|
C9200L-48PXG-4X |
48 ports full POE+ (12 mGig ports up to 10G, 36 ports up to 1G) |
4x 1/10G fixed uplinks |
PWR-C5-1KWAC |
Fixed redundant |
|
C9200L-24PXG-2Y |
24 ports full PoE+ (8 mGig ports up to 10G, 16 ports up to 1G) |
2x 1/10/25G fixed uplinks |
PWR-C5-600WAC |
Fixed redundant |
|
C9200L-48PXG-2Y |
48 ports full POE+ (8 mGig ports up to 10G, 40 ports up to 1G) |
2x 1/10/25G fixed uplinks |
PWR-C5-1KWAC |
Fixed redundant |
|
C9200CX-12T-2X2G |
12 ports data |
2x 1G copper, 1x 1G CU PD 802.3bt Class 6, 2x 10G SFP+ fixed uplinks |
Powered by 802.3bt class 6 PoE Optional auxiliary 80W AC or DC power adaptor |
Fanless |
|
C9200CX-12P-2X2G |
12 ports PoE+ |
2x 1G copper, 2x 10G SFP+ fixed uplinks |
315W AC internal |
Fanless |
|
C9200CX-8P-2X2G |
8 ports full PoE+ |
2x 1G copper, 2x 10G SFP+ fixed uplinks |
315W AC internal |
Fanless |
|
C9200CX-8UXG-2X |
8 ports UPOE (4 mGig ports up to 10G, 4 ports up to 1G) |
2x 10G SFP+ fixed uplinks |
315W AC internal |
Fanless |
|
C9200CX-12P-2XGH |
12 ports PoE+ |
2x 1G copper, 2x 10G SFP+ fixed uplinks |
315W HVDC/AC internal |
Fanless |
|
C9200CX-8P-2XGH |
8 ports full PoE+ |
2x 1G copper, 2x 10G SFP+ fixed uplinks |
315W HVDC/AC internal |
Fanless |
|
C9200CX-8UXG-2XH |
8 ports UPOE (4 mGig ports up to 10G, 4 ports up to 1G) |
2x 10G SFP+ fixed uplinks |
315W HVDC/AC internal |
Fanless |
Cisco Catalyst 9200 Series switches come with modular or fixed uplinks as indicated in Table 1. With modular SKUs, the field-replaceable network modules provide infrastructure investment protection by allowing a nondisruptive migration from 1G to 10G and beyond. When you purchase the switch, you can choose from the network modules described in Table 3.
Cisco Catalyst 9200 Series Switch network modules
Table 3. Network module part numbers and descriptions
|
Description |
|
|
C9200-NM-2Y1 |
2 x 25G Network Module |
|
C9200-NM-2Q1 |
2 x 40G Network Module |
|
C9200-NM-4G2 |
4x 1G network module |
|
C9200-NM-4X |
4x 1G/10G network module |
|
C9200-NM-BLANK |
No network module |
For additional details, please read our FAQ: https://www.cisco.com/c/dam/en/us/products/collateral/switches/catalyst-9000/nb-09-cat-9k-faq-cte-en.pdf.
Power supplies
Cisco Catalyst 9200 Series switches support dual field-replaceable power supplies (Figure 3). Each switch ships with one default power supply, and a second identical power supply can be purchased with the initial order or can be added later. The second power supply can provide redundancy or additional power to PoE+ ports as needed.
Cisco Catalyst 9200CX Series HVDC models can be powered by high voltage DC as well as line voltage AC with its default power supply. These switches support high efficiency and low energy consumption when connected to DC micro grid by avoiding multiple AC-DC conversions. The compatibility with AC also provides flexibility and investment protection for moving to DC power in the future.
● IEEE 802.3at PoE+ (up to 30W per port) is supported on Cisco Catalyst 9200 Series switches to lower the total cost of ownership for deployments that incorporate Cisco IP phones, Cisco Aironet wireless access points, or other standards-compliant PoE+ end devices. PoE+ removes the need to supply wall power to PoE-enabled devices and eliminates the cost of adding electrical cabling and circuits that would otherwise be necessary in IP phone and WLAN deployments. With Cisco Catalyst 9200 Series switches, PoE+ power allocation is dynamic, and power mapping scales up to a maximum of 1440W of PoE+ power.
● IEEE 802.3bt Class 6 and Cisco UPOE (up to 60W per port) is supported on Catalyst 9200CX Series mGig model. This facilitates delivery of network power to devices requiring higher power.
● PoE Powered Device (PD) - Catalyst 9200CX-12T-2X2G can be powered through the uplink with IEEE 802.3bt class 6 or UPOE+ power from upstream switch.
● Perpetual PoE is supported on Cisco Catalyst 9200 Series switches, and maintains the PoE+ power during a switch reload. This is important for critical endpoints such as medical devices and for Internet of Things (IoT) endpoints such as PoE-powered lights, so that there is no disruption during a switch reboot.
● Fast PoE: When power is restored to a switch, Fast PoE starts delivering power to endpoints without waiting for the operating system to fully load, thereby speeding up the time for the endpoint to start up.
Cisco Catalyst 9200 Series Switch dual redundant power supplies
Table 4 lists the PoE power availability for each model.
Table 4. PoE+ Power with primary and secondary power supplies
|
Model |
Default primary power supply |
Available PoE power with single primary power supply only* |
Optional secondary power supply |
Available PoE power with additional secondary power supply* |
|
C9200-24P |
PWR-C6-600WAC |
370W |
PWR-C6-600WAC |
740W |
|
C9200-24PB |
PWR-C6-600WAC |
370W |
PWR-C6-600WAC |
740W |
|
C9200-24PXG |
PWR-C6-600WAC |
370W |
PWR-C6-600WAC |
740W |
|
C9200-48P |
PWR-C6-1KWAC |
740W |
PWR-C6-1KWAC |
1440W |
|
C9200-48PL |
PWR-C6-600WAC |
370W |
PWR-C6-600WAC |
740W |
|
C9200-48PB |
PWR-C6-1KWAC |
740W |
PWR-C6-1KWAC |
1440W |
|
C9200-48PXG |
PWR-C6-1KWAC |
740W |
PWR-C6-1KWAC |
1440W |
|
C9200L-24P-4G |
PWR-C5-600WAC |
370W |
PWR-C5-600WAC |
740W |
|
C9200L-24P-4X |
PWR-C5-600WAC |
370W |
PWR-C5-600WAC |
740W |
|
C9200L-48P-4G |
PWR-C5-1KWAC |
740W |
PWR-C5-1KWAC |
1440W |
|
C9200L-48PL-4G |
PWR-C5-600WAC |
370W |
PWR-C5-600WAC |
740W |
|
C9200L-48P-4X |
PWR-C5-1KWAC |
740W |
PWR-C5-1KWAC |
1440W |
|
C9200L-48PL-4X |
PWR-C5-600WAC |
370W |
PWR-C5-600WAC |
740W |
|
C9200L-24PXG-4X |
PWR-C5-600WAC |
370W |
PWR-C5-600WAC |
740W |
|
C9200L-48PXG-4X |
PWR-C5-1KWAC |
740W |
PWR-C5-1KWAC |
1440W |
|
C9200L-24PXG-2Y |
PWR-C5-600WAC |
370W |
PWR-C5-600WAC |
740W |
|
C9200L-48PXG-2Y |
PWR-C5-1KWAC |
740W |
PWR-C5-1KWAC |
1440W |
|
C9200CX-12P-2X2G |
315W AC Internal |
240W |
N/A |
N/A |
|
C9200CX-8P-2X2G |
315W AC internal |
240W |
N/A |
N/A |
|
C9200CX-8UXG-2X |
315W AC internal |
240W |
N/A |
N/A |
|
C9200CX-12P-2XGH |
315W HVDC/AC internal |
240W |
N/A |
N/A |
|
C9200CX-8P-2XGH |
315W HVDC/AC internal |
240W |
N/A |
N/A |
|
C9200CX-8UXG-2XH |
315W HVDC/AC internal |
240W |
N/A |
N/A |
*Limited by port number and port rating (for example, 24 PoE+ 30W ports = 720W)
Stacking
Cisco Catalyst 9200 Series switch models are designed for stacking switches as a single virtual switch, enabling customers to have a single management plane and control plane for up to 384 access ports.
Table 5 lists the supported stacking options.
Table 5. Supported stacking options
|
Model |
Stacking support |
Stacking bandwidth support |
Stacking hardware |
Number of members |
Supported stack members |
|
StackWise-160 |
160 Gbps |
C9200-STACK-KIT |
8 |
Other C9200 models with same license level |
|
|
Fixed models |
StackWise-80 |
80 Gbps |
C9200L-STACK-KIT |
8 |
Other C9200L models with same license level |
Mixed stacking is not supported. You cannot stack fixed (C9200L SKUs) with modular (C9200 SKUs) models, or other Catalyst switches, e.g. Cisco Catalyst 2960-X and 2960-XR Series. Stacking not available on C9200CX switches.
The optional StackWise-160 and StackWise-80 kits consist of two adapters and a stacking cable. The default stacking cable is 0.5 m, but options of 1 m and 3 m are also available.
Table 6 lists the stacking accessories.
Table 6. Stacking accessories
|
Model |
Description |
|
Stack kit for C9200 SKUs only: Two data stack adapters and one data stack cable |
|
|
C9200L-STACK-KIT |
Stack kit for C9200L SKUs only: Two data stack adapters and one data stack cable |
|
STACK-T4-50CM |
Data stack 50 cm cable (default cable with Stack Kit) |
|
STACK-T4-1M |
Data stack 1 m cable |
|
STACK T4-3M |
Data stack 3 m cable |
Cisco Catalyst 9200 Series Switch stacked units
Cisco Catalyst 9200 Series switches also come with dual fans and support redundancy. Cisco Catalyst 9200 Series switches support redundancy with dual fans. On the C9200 SKUs, the fan units are field-replaceable, whereas on the fixed C9200L SKUs, the fan units are fixed. C9200CX SKUs are fanless.
Table 7 lists the fan module part number.
Table 7. Fan modules
Table 8 lists performance and scalability metrics for Cisco Catalyst 9200 Series switches. Table 9 lists the bandwidth specifications.
Table 8. Performance specifications
|
Description |
C9200 SKUs |
C9200L SKUs |
C9200CX SKUs |
|
4 for C9200-24T, C9200-24P, C9200-48T, C9200-48P, C9200- 24PXG, C9200-48PXG, C9200-48PL 32 for C9200-24PB, C9200-48PB |
1 |
16 |
|
|
Stacking bandwidth |
160 Gbps |
80 Gbps |
N/A |
|
Total number of MAC addresses |
32,000 |
16,000 |
32,000 |
|
Total number of IPv4 routes (ARP plus learned routes) |
14,000 (10,000 direct routes and 4,000 indirect routes) |
11,000 (8,000 direct routes and 3,000 indirect routes) |
14,000 (10,000 direct routes and 4,000 indirect routes) |
|
IPv4 routing entries |
4,000 |
3,000 |
4,000 |
|
IPv6 routing entries |
2,000 |
1,500 |
2,000 |
|
Multicast routing scale |
1,000 |
1,000 |
1,000 |
|
QoS scale entries |
1,000 |
1,000 |
1,000 |
|
ACL scale entries |
1,600 |
1,500 |
1,600 |
|
Packet buffer per SKU |
6 MB buffers for 24- or 48-port Gigabit Ethernet models, 12MB buffers for 24 or 48 port multigigabit models |
6 MB buffers for 24- or 48- port Gigabit Ethernet models, 12 MB buffers for 24 or 48 port multigigabit models |
6 MB buffers |
|
Flexible NetFlow (FNF) entries |
16,000 flows on 24- and 48-port Gigabit Ethernet models |
16,000 flows on 24- and 48- port Gigabit Ethernet models, 32,000 flows on 24 or 48 port multigigabit models |
16,000 flows |
|
DRAM |
4 GB |
2 GB |
4 GB |
|
Flash |
4 GB |
4 GB |
8 GB |
|
VLAN IDs |
4096 |
4096 |
4096 |
|
PVST Instances |
128 |
128 |
128 |
|
STP Virtual Ports |
13,000 |
13,000 |
13,000 |
|
STP Virtual Ports |
13,000 |
13,000 |
13,000 |
|
Total Switched Virtual Interfaces (SVIs) |
1000 |
512 |
1000 |
|
Jumbo frames |
9198 bytes |
9198 bytes |
9198 bytes |
|
Wireless bandwidth per switch |
Up to 48 Gbps on 24- port and 48-port Gigabit Ethernet model |
N/A |
N/A |
|
IP SGT binding scale |
8K |
10K |
8K |
|
Number of IPv4 bindings |
8K |
10K |
8K |
|
Number of SGT/DGT policies |
2K |
2K |
2K |
|
Number of SXP Sessions |
200 |
200 |
200 |
Table 9. Bandwidth specifications
|
Description |
Switching capacity |
Switch capacity with Stacking |
Forwarding rate |
Forwarding rate with Stacking |
|
C9200-24T |
128 Gbps |
288 Gbps |
95.23 Mpps |
214 Mpps |
|
128 Gbps |
288 Gbps |
95.23 Mpps |
214 Mpps |
|
|
C9200-24PB |
128 Gbps |
288 Gbps |
95.23 Mpps |
214 Mpps |
|
C9200-24PXG |
352 Gbps |
532 Gbps |
261.90 Mpps |
395 Mpps |
|
C9200-48T |
176 Gbps |
336 Gbps |
130.95 Mpps |
250 Mpps |
|
C9200-48P |
176 Gbps |
336 Gbps |
130.95 Mpps |
250 Mpps |
|
C9200-48PL |
176 Gbps |
336 Gbps |
130.95 Mpps |
250 Mpps |
|
C9200-48PB |
176 Gbps |
336 Gbps |
130.95 Mpps |
250 Mpps |
|
C9200-48PXG |
400 Gbps |
580 Gbps |
297.61 Mpps |
431 Mpps |
|
C9200L-24T-4G |
56 Gbps |
136 Gbps |
41.66 Mpps |
101 Mpps |
|
C9200L-24P-4G |
56 Gbps |
136 Gbps |
41.66 Mpps |
101 Mpps |
|
C9200L-48T-4G |
104 Gbps |
184 Gbps |
77.38 Mpps |
137 Mpps |
|
C9200L-48P-4G |
104 Gbps |
184 Gbps |
77.38 Mpps |
137 Mpps |
|
C9200L-48PL-4G |
104 Gbps |
184 Gbps |
77.38 Mpps |
137 Mpps |
|
C9200L-24T-4X |
128 Gbps |
208 Gbps |
95.23 Mpps |
155 Mpps |
|
C9200L-24P-4X |
128 Gbps |
208 Gbps |
95.23 Mpps |
155 Mpps |
|
C9200L-48T-4X |
176 Gbps |
256 Gbps |
130.95 Mpps |
190 Mpps |
|
C9200L-48P-4X |
176 Gbps |
256 Gbps |
130.95 Mpps |
190 Mpps |
|
C9200L-48PL-4X |
176 Gbps |
256 Gbps |
130.95 Mpps |
190 Mpps |
|
C9200L-24PXG-4X |
272 Gbps |
352 Gbps |
214.28 Mpps |
262 Mpps |
|
C9200L-24PXG-2Y |
292 Gbps |
372 Gbps |
229.16 Mpps |
277 Mpps |
|
C9200L-48PXG-4X |
392 Gbps |
472 Gbps |
291.66 Mpps |
351 Mpps |
|
C9200L-48PXG-2Y |
340 Gbps |
420 Gbps |
252.97 Mpps |
313 Mpps |
|
C9200CX-12T-2X2G |
70 Gbps |
N/A |
52.08 Mpps |
N/A |
|
C9200CX-12P-2X2G |
68 Gbps |
N/A |
50.59 Mpps |
N/A |
|
C9200CX-8P-2X2G |
60 Gbps |
N/A |
44.64 Mpps |
N/A |
|
C9200CX-8UXG-2X |
128 Gbps |
N/A |
95.23 Mbps |
N/A |
|
C9200CX-12P-2XGH |
68 Gbps |
N/A |
50.59 Mpps |
N/A |
|
C9200CX-8P-2XGH |
60 Gbps |
N/A |
44.64 Mpps |
N/A |
|
C9200CX-8UXG-2XH |
128 Gbps |
N/A |
95.23 Mbps |
N/A |
US$ 2,568.00
US$ 1,583.40
US$ 1,409.00
US$ 2,691.80
US$ 1,492.90
US$ 1,214.40
US$ 3,162.60
US$ 842.80
