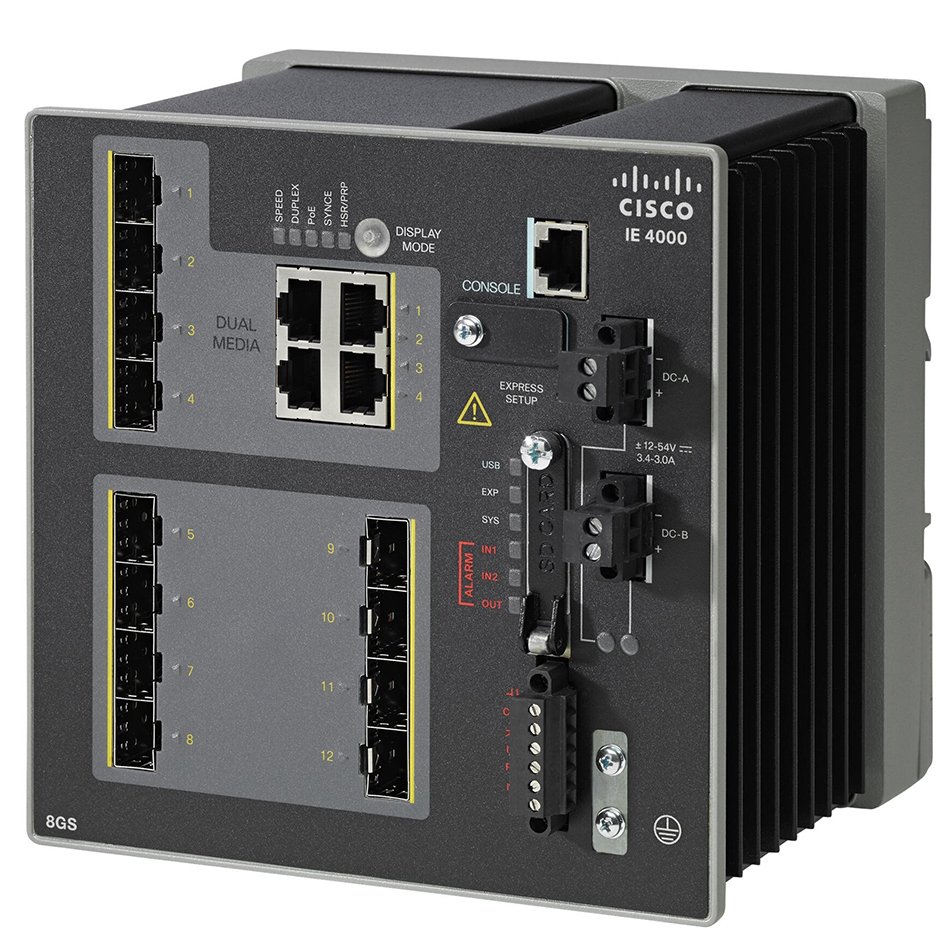

IE4000 switch with 8 GE SFP and 4 GE combo uplink ports # IE-4000-8GS4G-E
Sale Price: US$ 1,956.00 (68.0% OFF)
List Price:
US$ 6,115.00
Condition: New Sealed
Delivery Time: Exstock
The Cisco® Industrial Ethernet (IE) 4000 Series delivers Gigabit connectivity to Cisco ruggedized switching portfolio with superior high-bandwidth switching capacity and proven Cisco IOS® Software. The IE 4000 Series provides highly secure access and industry-leading convergence ring protocols to support resilient and scalable networks while adhering to industry compliance requirements.
The IE 4000 Series is ideal for industrial Ethernet applications where hardened products are required, including manufacturing, energy, transportation, smart cities. The IE4000 has built-in SW image verification to ensure authenticity of the Cisco Software. With improved overall performance, greater bandwidth, advanced security features, and enhanced hardware, the Cisco IE 4000 Series complements the current industrial Ethernet portfolio of related Cisco industrial switches, such as the Cisco IE 2000, IE 3200, IE 3300 and IE 3400.
The IE 4000 Series can be used to easily and securely extend the enterprise network to harsh environments with a software-defined access extension for the Internet of Things (IoT) enabling connectivity in outdoor areas, warehouses, distribution centers, roadways, etc., using powerful enterprise-grade intent-based network management platform such as Cisco DNA Center.
The Cisco IE 4000 can easily be installed with a GUI based Device Manager and it also offers out-of-the-box industrial usage configuration and simplified manageability to deliver advanced security, data, video, and voice services over industrial networks.
Table 1 lists the features and benefits of Cisco IE 4000 Series Switches.
Table 1. Features and benefits of Cisco IE 4000 switches
| Feature | Benefit |
| Robust industrial design | ● Built for harsh environment and temperature range (-40 to 70 C).
● Hardened for vibration, shock and surge, and noise immunity. ● Resilient dual ring design via 4x Gigabit Ethernet uplink ports. ● Complies with multi-industry specifications for automation, ITS, and substation environments. ● Improves uptime, performance, and safety of industrial systems and equipment. ● Fitted with compact, DIN rail compliant form factor ideal for industrial deployment. ● Covers a wide range of Power over Ethernet (PoE) application requirements. |
| User-friendly GUI device manager | ● Allows easy configuration and monitoring via a web based device manager.
● Eliminates the need for more complex terminal emulation programs. ● Reduces the cost of deployment. ● Multiple Language Support - English, Chinese (Traditional), Chinese (Simplified), French, German, Japanese, Spanish (LATAM) |
| SwapDrive: “zero-config” replacement | ● Simple switch replacement in case of a failure.
● No networking expertise required. ● Helps ensure fast recovery. |
| High-density industrial Power over Ethernet (PoE) | ● Reduces complexity with one cable for both connectivity and power.
● Controls costs by limiting wiring, distribution panels, and circuit breakers. ● Creates space and reduces heat dissipation. ● Enables ready-to-use PoE devices like IP phones and wireless access points. ● Supports (on select models) maximum HD camera deployments. ● Designed to support PoE power budget up to 240W (Refer Table 2 for details) |
| Full Gigabit Ethernet switch | ● Connects new wireless access point (802.11n and 802.11ac).
● Enables new HD IP Cameras and new PLC (Programmable Logic Control). ● Allows SCADA (Supervisory Control And Data Acquisition) connectivity. ● Provides introduction of new bandwidth-hungry applications in the industrial space. ● Supports very-delay-sensitive applications and time-sensitive networks. ● Delivers multiple rings, redundant ring topology for new network configurations. ● Extends geographical scalability where longer distance connectivity is required. |
The Cisco Industrial Ethernet (IE) 4000 Series offers:
- Bandwidth and capacity to grow with your networking needs: 20-Gbps nonblocking switching capacity with up to 20 Gigabit Ethernet ports per switch
- High-density industrial PoE/PoE+ support providing in-line power to up to 8 power devices, including IP cameras and phones, badge readers, wireless access points, etc.
- Cisco IOS Software features for smooth IT integration and policy consistency
- Robust resiliency enabled by dual ring design via 4x Gigabit Ethernet uplink ports, Resilient Ethernet Protocol (REP), Parallel Redundancy Protocol (PRP), PROFINET– Media Redundancy Protocol (MRP) ring, High Availability Seamless Redundancy (HSR) ring, EtherChannel and Flex Links support, redundant power input, dying gasp, etc.
- True zero-touch replacement for middle-of-the-night or middle-of-nowhere failure
- Line-rate, low-latency forwarding with advanced hardware assist features (such as NAT, IEEE1588)
- Simplified software upgrade path with universal images
- Support of Industrial automation protocols EtherNet/IP (CIP), PROFINET, and Modbus TCP
Cisco ONE Software offers a simplified consumption model, centered on common customer scenarios in the industrial automation and extended enterprise environments. Cisco ONE Software and services provide customers with four primary benefits:
- Software suites that address typical customer use scenarios at an attractive price
- Investment protection for their software purchase through software services-enabled license portability
- Access to ongoing innovation and new technology with Cisco Software Support Service (SWSS)
- Flexible licensing models to smoothly distribute customers' software spending over time
Figure 1 shows the switch models, Table 2 lists all the available Cisco IE 4000 Series models, Table 3 lists the power supplies for Cisco IE 4000 Series Switches.
Figure 1.
IE 4000 models
Table 2. Cisco IE 4000 Series Switches
| Product number | Total ports | GE combo (SFP or RJ45) uplinks (4G)1 | Additional combo (SFP or RJ45) ports | RJ45 copper ports (T) | SFP fiber ports (S) | PoE/PoE+ ports (P, GP), Maximum PoE power budget | Default software License |
| IE-4000-4TC4G-E | 8 | All models have 4 GE combo uplink ports | 4 FE | All models ship with LAN Base feature set2 | |||
| IE-4000-8T4G-E | 12 | 8 FE | |||||
| IE-4000-8S4G-E | 12 | 8 FE | |||||
| IE-4000-4T4P4G-E | 12 | 4 FE | 4 FE, 125W | ||||
| IE-4000-16T4G-E | 20 | 16 FE | |||||
| IE-4000-4S8P4G-E | 16 | 4 FE | 8 FE, 125W | ||||
| IE-4000-8GT4G-E | 12 | 8 GE | |||||
| IE-4000-8GS4G-E | 12 | 8 GE | |||||
| IE-4000-4GC4GP4G-E | 12 | 4 GE | 4 GE, 125W | ||||
| IE-4000-16GT4G-E | 20 | 16 GE | |||||
| IE-4000-8GT8GP4G-E | 20 | 8 GE | 8 GE, 240W | ||||
| IE-4000-4GS8GP4G-E | 16 | 4 GE | 8 GE, 125W |
1 Combo ports provide one copper and one fiber physical port and only one can be activated at a time.
2 Can be upgraded to IP Services at a fee.
All copper Gigabit Ethernet interfaces support speed negotiation to 10/100/1000 mbps and duplex negotiation. All copper Fast Ethernet interfaces support speed negotiation to 10/100 mbps and duplex negotiation.
Table 3. Power supplies for Cisco IE 4000 Series Switches
| Product Number | Wattage | Rated nominal input operating range | PoE/PoE+ support1 | More Details |
| PWR-IE50W-AC= | 50W | AC 100-240V/1.25A 50-60Hz
or DC 125-250V/1.25A |
No | Click here for more details on these DIN Rail power supplies3 |
| PWR-IE50W-AC-L= 2 | 50W | AC 100-240V/1.2A 50-60Hz | No | |
| PWR-IE65W-PC-AC= | 65W | AC 100-240V/1.4A 50-60Hz
or DC 125-250V/1.0A |
Yes | |
| PWR-IE65W-PC-DC= | 65W | DC 24-48VDC/4.5A | Yes | |
| PWR-IE170W-PC-AC= | 170W | AC 100-240V/2.3A 50-60Hz
or DC 125-250V/2.1A |
Yes | |
| PWR-IE170W-PC-DC= | 170W | DC 12-54VDC/2.3A | Yes | |
| PWR-IE240W-PCAC-L= 2 | 240W | AC 100-240V/3.5A 50-60Hz | Yes | |
| PWR-IE480W-PCAC-L= 2 | 480W | AC 100-240V/6.0A 50-60Hz | Yes |
1 The entire power budget for the switch and PoE ports needs to stay within the power supply.
2 The power supplies are not certified for smart grid and hazardous locations. These power supplies are IP20 rated.
3 Power Supplies Datasheet Link: https://www.cisco.com/c/en/us/products/collateral/switches/industrial-ethernet-switches/datasheet-c78-742180.html
The diagram in Figure 2 can help you select a Cisco IE 4000 model.
Figure 2.
Cisco IE 4000 model selection guide
Table 4 lists specifications, Table 5 gives information about switch power specifications, Table 6 provides physical specifications, Table 7 provides switch performance and scalability, Tables 8 and 9 list important software features according to corresponding licensing schemes. Table 10 and 11 provide Cisco DNA Center license information. Table 12 lists compliance specifications. Table 13 gives information about management and standards of the Cisco IE 4000 Series Switches, and Table 14 shows the list of supported SFPs.
Table 4. Product specifications
| Description | Specification |
| Hardware | ● 1GB DRAM
● 128-MB onboard flash memory ● 1-GB removable SD flash memory card (Included) ● Mini-USB connector ● RJ-45 connector |
| Alarm | ● Alarm I/O: two alarm inputs to detect dry contact open or closed, one alarm output relay |
Table 5. Power specifications
| Features | IE-4000-4T4P4G-E
IE-4000-8T4G-E IE-4000-8GT4G-E IE-4000-16T4G-E |
IE-4000-4GC4GP4G-E
IE-4000-4TC4G-E IE-4000-4S8P4G-E IE-4000-4GS8GP4G-E IE-4000-16GT4G-E IE-4000-8GT8GP4G-E |
IE-4000-8S4G-E
IE-4000-8GS4G-E |
| Input voltage range | Redundant DC input voltage: nominal 9.6 to 60VDC | Redundant DC input voltage: nominal 9.6 to 60VDC | Redundant DC input voltage: nominal 9.6 to 60VDC |
| Maximum Input current | 3.7A | 4.3A | 5.0A |
| Power consumption1 | 35W | 40W | 42W |
1These numbers are measured at 9.6V and do not include PoE power consumption.
Table 6. Physical specifications
| Features | IE-4000-4T4P4G-E
IE-4000-8T4G-E IE-4000-8GT4G-E IE-4000-16T4G-E |
IE-4000-4GC4GP4G-E
IE-4000-4TC4G-E IE-4000-4S8P4G-E IE-4000-4GS8GP4G-E IE-4000-16GT4G-E IE-4000-8GT8GP4G-E |
IE-4000-8S4G-E
IE-4000-8GS4G-E
|
| Dimensions (H x W x D) | 6.12 x 6.12 x 5.09 in. (155.4 x 155.4 x 129.2 mm) | ||
| Weight | 6.35 pounds (2.88 kg) | ||
Figure 3 shows the IE4000 mechanical dimensions.
Figure 3.
IE-4000 dimensions
Table 7. Switch performance and scalability
| Description | Specification |
| Forwarding rate | Line rate for all ports and all packet sizes |
| Number of queues | 4 egress |
| Unicast MAC addresses | 16,000 |
| IGMP multicast groups | 1,000 |
| Number of VLANs | 1,000 |
| IPv4 MAC security ACEs | 1,000 with default TCAM Template |
| NAT translation | Bidirectional, 128 unique subnet NAT translation entries, which can expand to tens of thousands of translated entries if designed properly |
Table 8. Cisco IE 4000 LAN Base: Key software features
| LAN Base license (default) | Features |
| Layer 2 switching | IEEE 802.1, 802.3, 802.3at, 802.3af standard, VTPv2, NTP, UDLD, CDP, LLDP, Unicast Mac filter, Flexlink, Resilient Ethernet Protocol (REP), VTPv3, EtherChannel, Voice VLAN, QinQ tunneling, Industrial macro configuration |
| Security | SCP, SSH, SNMPv3, TACACS+, RADIUS Server/Client, MAC Address Notification, BPDU Guard, Port-Security, Private VLAN, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, 802.1x, Guest VLAN, MAC Authentication Bypass, 802.1x Multi-Domain Authentication, Storm Control, Trust Boundary, FIPS 140-2, ACT2, Secure boot, Full flexible Netflow1 |
| Layer 2 multicast | IGMPv1, v2, v3 Snooping, IGMP filtering, IGMP Querier |
| Management | Fast Boot, Express setup, Web Device Manager, Industrial Network Director (IND), MIB, Smartport, SNMP, syslog, storm control, unicast, multicast, broadcast, SPAN sessions, RSPAN, DHCP server, customized DOM (digital optical management), Embedded Event Manager (EEM), Plug-n-Play Agent, Port-based DHCP |
| Industrial Ethernet | CIP Ethernet/IP, Profinet v2, IEEE 1588 PTP v2, NTP to PTP translation, CIP Time Sync |
| Quality of service | Ingress Policing, Rate-Limit, Egress Queueing/shaping, AutoQoS, QoS, PROFINET QoS |
| Layer 2 IPv6 | IPv6 Host support, HTTP over IPv6, SNMP over IPv6 |
| Layer 3 routing | IPv4 Static Routing |
| Industrial management | Layer 2 switching with 1:1 static Network Address Translation (NAT) |
| Redundancy | Redundancy Ethernet Protocol ring (REP)
Parallel Redundancy Protocol (PRP) Media Redundancy Protocol (MRP) ring, MRP Auto Manager (MAM) High Availability Seamless Redundancy (HSR), PTP over HSR HSR-PRP (Dual RedBox mode) HSR-HSR (Quadbox) |
| Utility | Power Profile, dying gasp, GOOSE messaging, SCADA protocol classification, MODBUS TCP/IP, utility SmartPort macro, BFD, Ethernet OAM, IEEE 802.3ah, CFM (IEEE 802.1ag) |
1 Full flexible NetFlow is included on all IE-4000 Switches and requires either one of the following licenses per switch:
- Cisco ONE™Foundation Perpetual license
- Cisco DNA Essentials license
- Cisco IP Services license
Table 9. Cisco IE 4000 IP Services: Key software features
| IP Services license | Additional features |
| IP multicast | PIM sparse mode (PIM-SM), PIM dense mode (PIM-DM), and PIM sparse-dense mode |
| IP unicast routing protocols | OSPF, EIGRP, BGPv4, IS-IS, RIPv2, Policy-Based Routing (PBR), HSRP |
| IPv6 routing | RIPng, OSPFv6, and EIGRPv6 support |
| Security | IEEE 802.1AE MACsec (including PSK based MKA support), Cisco TrustSec®, SGT inline tagging and SGACL, Full flexible Netflow |
| Virtualization | VRF-lite |
Table 10. Cisco IE 4000 DNA Essentials license features
| Feature | Description |
| Cisco DNA Center | Discovery, topology, inventory, software image management |
| Visibility | Cisco DNA assurance, full flexible Netflow, Device 360 |
| Day-zero network bring-up automation | Cisco Network Plug-and-Play application |
Table 11. Cisco IE 4000 DNA Advantage license features
| Feature | Description |
| Cisco DNA Essentials | All Cisco DNA Essentials features |
| Software-defined access | Policy based automation, IE 4000 can function as an SD-Access extended node |
Table 12. Compliance specifications
| Type | Standards |
| Electromagnetic emissions | FCC 47 CFR Part 15 Class A
EN 55022A Class A EN 300 386 VCCI Class A AS/NZS CISPR 22 Class A CISPR 11 Class A CISPR 22 Class A ICES 003 Class A CNS13438 Class A KN22 |
| Electromagnetic immunity | EN55024
CISPR 24 AS/NZS CISPR 24 KN24 EN 61000-4-2 Electro Static Discharge EN 61000-4-3 Radiated RF EN 61000-4-4 Electromagnetic Fast Transients N 61000-4-5 Surge EN 61000-4-6 Conducted RF EN 61000-4-8 Power Frequency Magnetic Field EN 61000-4-9 Pulse Magnetic Field EN 61000-4-11 AC Power Voltage EN 61000-4-18 Damped Oscillatory Wave EN-61000-4-29 DC Voltage Dips |
| Industry standards | EN 61000-6-1 Light Industrial EN 61000-6-2 Industrial
EN 61000-6-4 Industrial EN 61326 Industrial Control EN 61131-2 Programmable Controllers Substation KEMA (IEEE 1613, IEC 61850-3) Marine DNV GL – (Ships; High speed and light craft) NEMA TS-2 (EMC, environmental, mechanical) IEEE 1613 Electric Power Stations Communications Networking IEC 61850-3 Electric Substations Communications Networking EN50155 Railway - Electronic Equipment on Rolling Stock (EMC, ENV, Mech) EN50121-4 Railway - Signaling and Telecommunications Apparatus EN50121-3-2 Railway - Apparatus for Rolling Stock ODVA Industrial EtherNet/IP PROFINET conformance B IP30 (per EN60529) |
| Safety standards and certifications | Information Technology Equipment:
UL/CSA 60950-1 EN 60950-1 CB to IEC 60950-1 with all country deviations NOM to NOM-019-SCFI (through partners and distributor) Industrial Floor (Control Equipment): UL 508 CSA C22.2, No 142 Hazardous Locations: ANSI/ISA 12.12.01 CSA C22.2 No 213 IEC 60079-0, -15 IECEx test report EN 60079-0, -15 ATEX certification (Class I Zone 2) Cabinet enclosure required |
| Operating environment | Operating Temperature: -40C to +75C
● -40C to +70C (Vented Enclosure Operating) ● -40C to +60C (Sealed Enclosure Operating) ● -34C to +75C (Fan or Blower equipped Enclosure Operating) EN 60068-2-1 EN 60068-2-2 EN 61163 Altitude: up to 15,000 feet |
| Storage environment | Temperature: -40 to +85 degrees C
Altitude: 15,000 feet IEC 60068-2-14 |
| Humidity | Relative humidity of 5% to 95% non-condensing
IEC 60068-2-3 IEC 60068-2-30 |
| Shock and vibration | IEC 60068-2-27 (operational shock, 50G, 11ms, Half Sine)
IEC 60068-2-27 (Non-Operational Shock, 65-80G, 9ms, Trapezoidal) IEC 60068-2-6, IEC 60068-2-64, EN 61373 (Operational Vibration) IEC 60068-2-6, IEC 60068-2-64, EN 61373 (Non-operational Vibration) |
| Corrosion | ISO 9223: Corrosion
class C3-Medium class C4-High EN 60068-2-52 (Salt Fog) EN 60068-2-60 (Flowing Mixed Gas) |
| Others | RoHS Compliance
China RoHS Compliance TAA (Government) CE (Europe) |
| Warranty | Five-year limited HW warranty on all IE-4000 PIDs and all IE Power Supplies (see table 3 above). See link below for more details on warranty |
| Mean Time Between Failures (MTBF) | IE-4000-4TC4G-E: 578, 730 Hours
IE-4000-8T4G-E: 591, 070 Hours IE-4000-8S4G-E: 583, 700 Hours IE-4000-4T4P4G-E: 562, 300 Hours IE-4000-16T4G-E: 558, 310 Hours IE-4000-4S8P4G-E: 535, 880 Hours IE-4000-8GT4G-E: 591, 240 Hours IE-4000-8GS4G-E: 583, 700 Hours IE-4000-4GC4GP4G-E: 550, 940 Hours IE-4000-16GT4G-E: 558, 630 Hours IE-4000-8GT8GP4G-E: 519, 190 Hours IE-4000-4GS8GP4G-E: 536, 220 Hours |
Table 13. Management and standards
| Description | Specification | |
| IEEE standards | ● IEEE 802.1D MAC Bridges, STP
● IEEE 802.1p Layer2 COS prioritization ● IEEE 802.1q VLAN ● IEEE 802.1s Multiple Spanning-Trees ● IEEE 802.1w Rapid Spanning-Tree ● IEEE 802.1x Port Access Authentication ● IEEE 802.1AB LLDP ● IEEE 802.3ad Link Aggregation (LACP) ● IEEE 802.3af Power over Ethernet provides up to 15.4W DC power to each end device ● IEEE 802.3at Power over Ethernet provides up to 25.5W DC power to each end device |
● IEEE 802.3af Power over Ethernet
● IEEE 802.3at Power over Ethernet Plus ● IEEE 802.3ah 100BASE-X SMF/MMF only ● IEEE 802.3x full duplex on 10BASE-T ● IEEE 802.3 10BASE-T specification ● IEEE 802.3u 100BASE-TX specification ● IEEE 802.3ab 1000BASE-T specification ● IEEE 802.3z 1000BASE-X specification ● IEEE 1588v2 PTP Precision Time Protocol ● IEEE 802.1AS PTP ● IEEE 802.1Qbv TSN |
| RFC compliance | ● RFC 768: UDP
● RFC 783: TFTP ● RFC 791: IPv4 protocol ● RFC 792: ICMP ● RFC 793: TCP ● RFC 826: ARP ● RFC 854: Telnet ● RFC 951: BOOTP ● RFC 959: FTP ● RFC 1157: SNMPv1 ● RFC 1901,1902-1907 SNMPv2 ● RFC 2273-2275: SNMPv3 ● RFC 2571: SNMP Management ● RFC 1166: IP Addresses ● RFC 1256: ICMP Router Discovery |
● RFC 1305: NTP
● RFC 1492: TACACS+ ● RFC 1493: Bridge MIB Objects ● RFC 1534: DHCP and BOOTP interoperation ● RFC 1542: Bootstrap Protocol ● RFC 1643: Ethernet Interface MIB ● RFC 1757: RMON ● RFC 2068: HTTP ● RFC 2131, 2132: DHCP ● RFC 2236: IGMP v2 ● RFC 3376: IGMP v3 ● RFC 2474: DiffServ Precedence ● RFC 3046: DHCP Relay Agent Information Option ● RFC 3580: 802.1x RADIUS ● RFC 4250-4252 SSH Protocol |
| SNMP MIB objects | ● BRIDGE-MIB
● CALISTA-DPA-MIB ● CISCO-ACCESS-ENVMON-MIB ● CISCO-ADMISSION-POLICY-MIB ● CISCO-AUTH-FRAMEWORK-MIB ● CISCO-BRIDGE-EXT-MIB ● CISCO-BULK-FILE-MIB ● CISCO-CABLE-DIAG-MIB ● CISCO-CALLHOME-MIB ● CISCO-CAR-MIB ● CISCO-CDP-MIB ● CISCO-CIRCUIT-INTERFACE-MIB ● CISCO-CLUSTER-MIB ● CISCO-CONFIG-COPY-MIB ● CISCO-CONFIG-MAN-MIB ● CISCO-DATA-COLLECTION-MIB ● CISCO-DHCP-SNOOPING-MIB ● CISCO-EMBEDDED-EVENT-MGR-MIB ● CISCO-ENTITY-ALARM-MIB ● CISCO-ENTITY-SENSOR-MIB ● CISCO-ENTITY-VENDORTYPE-OID-MIB ● CISCO-ENVMON-MIB ● CISCO-ERR-DISABLE-MIB ● CISCO-FLASH-MIB ● CISCO-FTP-CLIENT-MIB ● CISCO-IF-EXTENSION-MIB ● CISCO-IGMP-FILTER-MIB ● CISCO-IMAGE-MIB ● CISCO-IP-STAT-MIB ● CISCO-LAG-MIB ● CISCO-LICENSE-MGMT-MIB ● CISCO-MAC-AUTH-BYPASS-MIB ● CISCO-MAC-NOTIFICATION-MIB ● CISCO-MEMORY-POOL-MIB ● CISCO-PAE-MIB ● CISCO-PAGP-MIB ● CISCO-PING-MIB ● CISCO-PORT-QOS-MIB ● CISCO-PORT-SECURITY-MIB ● CISCO-PORT-STORM-CONTROL-MIB ● CISCO-PRIVATE-VLAN-MIB ● CISCO-PROCESS-MIB ● CISCO-PRODUCTS-MIB ● CISCO-RESILIENT-ETHERNET-PROTOCOL-MIB ● CISCO-RTTMON-ICMP-MIB ● CISCO-RTTMON-IP-EXT-MIB ● CISCO-RTTMON-MIB ● CISCO RTTMON-RTP-MIB |
● CISCO RTTMON-RTP-MIB
● CISCO-SNMP-TARGET-EXT-MIB ● CISCO-STACK-MIB ● CISCO-STACKMAKER-MIB ● CISCO-STP-EXTENSIONS-MIB ● CISCO-SYSLOG-MIB ● CISCO-TCP-MIB ● CISCO-UDLDP-MIB ● CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB ● CISCO-VLAN-MEMBERSHIP-MIB ● CISCO-VTP-MIB ● ENTITY-MIB ● ETHERLIKE-MIB ● HC-RMON-MIB ● IEEE8021-PAE-MIB ● IEEE8023-LAG-MIB ● IF-MIB ● IP-FORWARD-MIB ● LLDP-EXT-MED-MIB ● LLDP-EXT-PNO-MIB ● LLDP-MIB ● NETRANGER ● NOTIFICATION-LOG-MIB ● OLD-CISCO-CHASSIS-MIB ● OLD-CISCO-CPU-MIB ● OLD-CISCO-FLASH-MIB ● OLD-CISCO-INTERFACES-MIB ● OLD-CISCO-IP-MIB ● OLD-CISCO-MEMORY-MIB ● OLD-CISCO-SYS-MIB< ● OLD-CISCO-SYSTEM-MIB ● OLD-CISCO-TCP-MIB ● OLD-CISCO-TS-MIB ● RMON-MIB ● RMON2-MIB ● SMON-MIB ● SNMP-COMMUNITY-MIB ● SNMP-FRAMEWORK-MIB ● SNMP-MPD-MIB ● SNMP-NOTIFICATION-MIB ● SNMP-PROXY-MIB ● SNMP-TARGET-MIB ● SNMP-USM-MIB ● SNMP-VIEW-BASED-ACM-MIB ● SNMPv2-MIB ● TCP-MIB ● UDP-MIB |
Table 14. SFP support
| Part number | Specification | SFP type | Max distance | Cable type | Temp range* | DOM support |
| GLC-FE-100FX-RGD= | 100BASE-FX | FE | 2km | MMF | IND | Yes |
| GLC-FE-100LX-RGD= | 100BASE-LX10 | FE | 10km | SMF | IND | Yes |
| GLC-FE-100FX= | 100BASE-FX | FE | 2km | MMF | COM | No |
| GLC-FE-100LX= | 100BASE-LX10 | FE | 10km | SMF | COM | No |
| GLC-FE-100EX= | 100BASE-EX | FE | 40km | SMF | COM | No |
| GLC-FE-100ZX= | 100BASE-ZX | FE | 80km | SMF | COM | No |
| GLC-FE-100BX-D= | 100BASE-BX10 | FE | 10km | SMF | COM | No |
| GLC-FE-100BX-U= | 100BASE-BX10 | FE | 10km | SMF | COM | Yes |
| GLC-SX-MM-RGD= | 1000BASE-SX | GE | 550m | MMF | IND | Yes |
| GLC-LX-SM-RGD= | 1000BASE-LX/LH | GE | 550m/10km | MMF/SMF | IND | Yes |
| GLC-ZX-SM-RGD= | 1000BASE-ZX | GE | 70km | SMF | IND | Yes |
| GLC-BX40-U-I= | 1000BASE-BX40 | GE | 40km | SMF | IND | Yes |
| GLC-BX40-D-I= | 1000BASE-BX40 | GE | 40km | SMF | IND | Yes |
| GLC-BX40-DA-I= | 1000BASE-BX40 | GE | 40km | SMF | IND | Yes |
| GLC-BX80-U-I= | 1000BASE-BX80 | GE | 80km | SMF | IND | Yes |
| GLC-BX80-D-I= | 1000BASE-BX80 | GE | 80km | SMF | IND | Yes |
| GLC-SX-MMD= | 1000BASE-SX | GE | 550m | MMF | EXT | Yes |
| GLC-LH-SMD= | 1000BASE-LX/LH | GE | 550m/10km | MMF/SMF | EXT | Yes |
| GLC-EX-SMD= | 1000BASE-EX | GE | 40km | SMF | EXT | Yes |
| GLC-ZX-SMD= | 1000BASE-ZX | GE | 70km | SMF | EXT | Yes |
| GLC-BX-D= | 1000BASE-BX10 | GE | 10km | SMF | COM | Yes |
| GLC-BX-U= | 1000BASE-BX10 | GE | 10km | SMF | COM | Yes |
| CWDM-SFP-xxxx= (8 freq) | CWDM 1000BASE-X | GE | SMF | COM | Yes | |
| DWDM-SFP-xxxx= (40 freq) | DWDM 1000BASE-X | GE | SMF | COM | Yes | |
| SFP-GE-S= | 1000BASE-SX | GE | 550m | MMF | EXT | Yes |
| SFP-GE-L= | 1000BASE-LX/LH | GE | 550m/10km | MMF/SMF | EXT | Yes |
| SFP-GE-Z= | 1000BASE-ZX | GE | 70km | SMF | EXT | Yes |
| GLC-SX-MM= | 1000BASE-SX | GE | 550m | MMF | COM | No |
| GLC-LH-SM= | 1000BASE-LX/LH | GE | 550m/10km | MMF/SMF | COM | No |
| GLC-ZX-SM= | 1000BASE-ZX | GE | 70km | SMF | COM | Yes |
| GLC-TE= | 1000BASE-T | GE | 100m | Copper | EXT | NA |
| GLC-T-RGD= | 1000BASE-T | GE | 100m | Copper | IND | NA |
| GLC-BX-U-I= | 1000BASE-BX | GE | 10km | SMF | IND | Yes |
| GLC-BX-D-I= | 1000BASE-BX | GE | 10km | SMF | IND | Yes |
Note:
Not all SFPs are supported in all software versions. For first software release supporting SFP, refer to https://www.cisco.com/en/US/products/hw/modules/ps5455/products_device_support_tables_list.html.
Not all SFPs are supported in PROFINET GSD, SIMATIC STEP7/TIA Portal. Please visit https://www.cisco.com/c/en/us/td/docs/switches/lan/industrial/software/configuration/guide/b_sfp_TIA.html.
* If nonindustrial (EXT, COM) SFPs are used, the switch operating temperature must be derated.
MMF = multimode fiber
SMF = single-mode fiber
Table 15 lists the ordering information for Cisco IE 4000 system.
Table 15. Ordering information
| Product ID | Description |
| Cisco IE 4000 Hardware PIDs | |
| IE-4000-16GT4G-E | IE4000 switch with 16 GE Copper and 4 GE combo uplink ports |
| IE-4000-16T4G-E | IE4000 switch with 16 FE Copper and 4 GE combo uplink ports |
| IE-4000-4GC4GP4G-E | IE4000 switch with 4 GE combo, 4 GE PoE+ and 4 GE combo uplink ports |
| IE-4000-4GS8GP4G-E | IE4000 switch with 4 GE SFP, 8 GE PoE+ and 4 GE combo uplink ports |
| IE-4000-4S8P4G-E | IE4000 switch with 4 FE SFP, 8 FE PoE+ and 4 GE combo uplink ports |
| IE-4000-4T4P4G-E | IE4000 switch with 4 FE Copper, 4 FE PoE+ and 4 GE combo uplink ports |
| IE4000-4TC4G-E | IE4000 switch with 4 FE Copper combo ports and 4 GE combo uplink ports |
| IE4000-8GS4G-E | IE4000 switch with 8 GE SFP and 4 GE combo uplink ports |
| IE4000-8GT4G-E | IE4000 switch with 8 GE Copper and 4 GE combo uplink ports |
| IE4000-8GT8GP4G-E | IE4000 switch with 8 GE Copper, 8 GE PoE+ and 4 GE combo uplink ports |
| IE4000-8S4G-E | IE4000 switch with 8 FE SFP and 4 GE combo uplink ports |
| IE4000-8T4G-E | IE4000 switch with 8 FE copper and 4 GE combo uplink ports |
| Cisco IE 4000 software licenses and accessories PIDs | |
| IE-LICENSE-SPARE | Spare license for software upgrade (L2 to L3 features or MRP protocols) |
| L-IE4000-RTU= | IE4000 Electronic software license upgrade from LAN base L2 to IP Services L3 features |
| LIC-MRP-Manager= | MRP ring manager license |
| LIC-MRP-Client= | MRP ring client license |
| STK-RACK-DINRAIL= | 19” DIN Rail mount kit |
| SD-IE-1GB= | IE 1GB SD Memory Card - Spare |
| Cisco ONE™ Licenses | |
| C1F1PIE4K5K1K9 | Cisco ONE Foundation Lite Perpetual
Includes Prime Infrastructure (LF and AS), Identity Services Engine - Base |
| C1F1PIE40001K9 | Cisco ONE Foundation Perpetual
Includes Full flexible Netflow, Stealthwatch, Prime Infrastructure, and Identity Services Enginer - Base |
| C1A1PIE40001K9 | Cisco ONE Advanced Perpetual
Includes IP Services |
| Cisco IE 4000 DNA licenses | |
| IE4000-DNA-E-L | Cisco DNA Essentials license (up to 12 ports) |
| IE4000-DNA-E-L-3Y | Cisco DNA Essentials 3 year term license (up to 12 ports) option |
| IE4000-DNA-E-L-5Y | Cisco DNA Essentials 5 year term license (up to 12 ports) option |
| IE4000-DNA-A-L | Cisco DNA Advantage license (up to 12 ports) |
| IE4000-DNA-A-L-3Y | Cisco DNA Advantage 3 year term license (up to 12 ports) option |
| IE4000-DNA-A-L-5Y | Cisco DNA Advantage 5 year term license (up to 12 ports) option |
| IE4000-DNA-E-M | Cisco DNA Essentials license (up to 24 ports) |
| IE4000-DNA-E-M-3Y | Cisco DNA Essentials 3 year term license (up to 24 ports) option |
| IE4000-DNA-E-M-5Y | Cisco DNA Essentials 5 year term license (up to 24 ports) option |
| IE4000-DNA-A-M | Cisco DNA Advantage license (up to 24 ports) |
| IE4000-DNA-A-M-3Y | Cisco DNA Advantage 3 year term license (up to 24 ports) option |
| IE4000-DNA-A-M-5Y | Cisco DNA Advantage 5 year term license (up to 24 ports) option |
IE4000 switch with 8 GE SFP and 4 GE combo uplink ports # IE-4000-8GS4G-E
