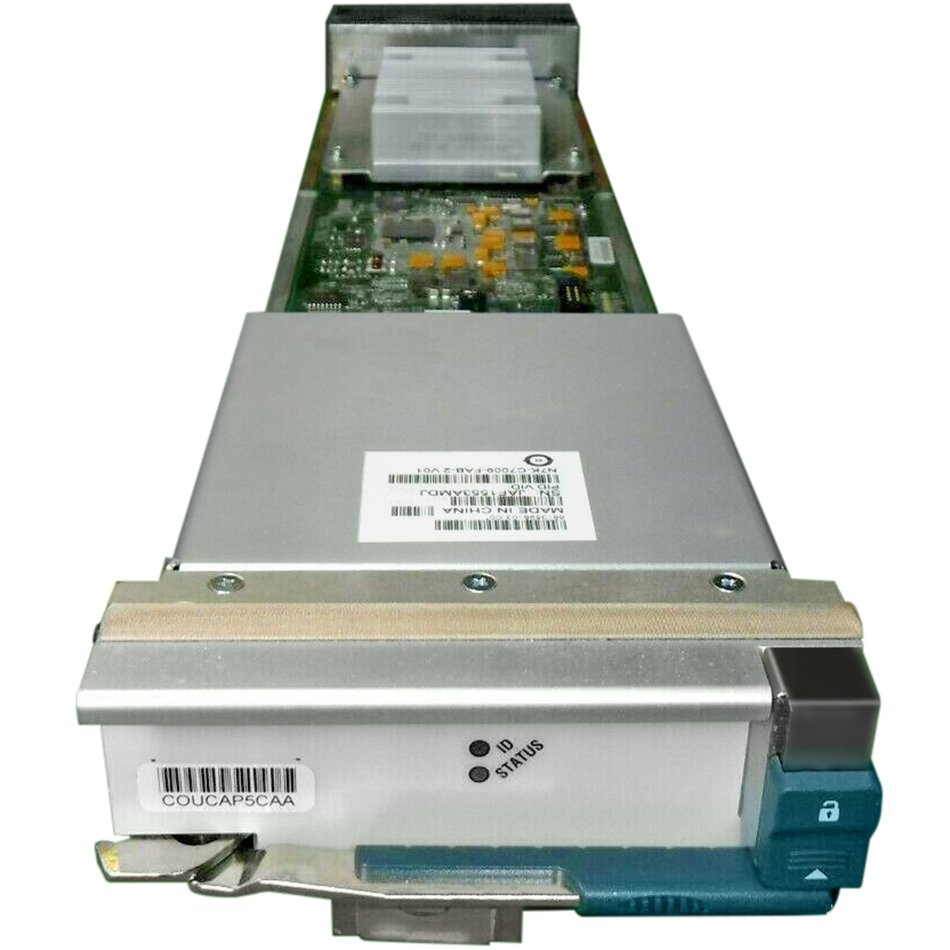

Nexus 7000 – 9 Slot Chassis – 110Gbps/Slot Fabric Module # N7K-C7009-FAB-2
Sale Price: US$ 2,250.00 (85.0% OFF)
List Price:
US$ 15,000.00
Condition: New Sealed
Delivery Time: Exstock
The Cisco Nexus ® 7000 Switches provide the foundation of the Cisco ® Unified Fabric. They are a modular data center-class product line designed for highly scalable 10 Gigabit Ethernet networks with a fabric architecture that scales beyond 15 terabits per second (Tbps). Designed to meet the requirements of the most mission-critical data centers, it delivers continuous system operation and virtualized, pervasive services. The Cisco Nexus 7000 Series is based on a proven operating system, with enhanced features to deliver real-time system upgrades with no service disruption together with exceptional manageability and serviceability.
The Cisco Nexus 7000 Fabric-2 Modules (Figure 1) for the Cisco Nexus 7000 chassis are separate fabric modules that provide parallel fabric channels to each I/O and supervisor module slot. Up to five simultaneously active fabric modules work together delivering up to 550 Gbps per slot. Through the parallel forwarding architecture, a system capacity of more than 15 Tbps is achieved with the five fabric modules. The fabric module provides the central switching element for fully distributed forwarding on the I/O modules.
Features and Benefits
Switch fabric scalability is made possible through the support of from one to five concurrently active fabric modules for increased performance as your needs grow. All fabric modules are connected to all module slots. The addition of each fabric module increases the bandwidth to all module slots up to the system limit of five modules. The architecture supports lossless fabric failover, with the remaining fabric modules load balancing the bandwidth to all the I/O module slots, helping ensure graceful degradation.
The combination of the Cisco Nexus 7000 fabric module and the supervisor and I/O modules supports virtual output queuing (VOQ) and credit-based arbitration to the crossbar switch to increase performance of the distributed forwarding system. VOQ and credit-based arbitration facilitate fair sharing of resources when a speed mismatch or contention for an uplink interface exists. The fabric architecture also enables future support for lossless Ethernet and unified I/O capabilities. Table 1 summarizes the features and benefits of the Cisco Nexus 7000 fabric module.
Table 1. Features and Benefits
| Feature | Benefit |
| High availability and redundancy | The fabrics support multilevel redundancy, where all available fabrics are active, and provide redundancy for all other fabric modules. All I/O module slots receive a fair share of the total fabric bandwidth, helping ensure lossless forwarding in the event of failover. |
| Scalable fabric | The combined fabric modules deliver 10 channels per I/O module and 5 channels per supervisor module, for a scalable capacity of more than 15 Tbps for forwarding performance, which can be increased as your needs grow. |
| Nondisruptive addition and removal of fabric modules | The switch capacity can scale with the addition of modules, with transparent upgrades for continuous operations. |
| Arbitrated crossbar for unicast | Class-of-service-aware forwarding is delivered in a fully distributed forwarding system that allows future enhancements to Ethernet to support unified I/O. |
| VOQ | In conjunction with the supervisor module, VOQ provides a quality-of-service (QoS) aware lossless fabric, avoiding the problems associated with head-of-line blocking. |
| Multistage crossbar fabric | System forwarding performance is enhanced by a combination of local fabric switching between ports on the same module and centralized forwarding through the fabric for ports on different modules. |
| Superframing and frame segmentation | Crossbar efficiency is optimized by the use of superframing and frame segmentation to provide deterministic latency and throughput. |
| ID LED | Using the beacon feature, the administrator can clearly identify the chassis and fabric module. |
Product Specifications
Table 2 lists the product specifications for the Cisco Nexus 7000 fabric modules.
Table 2. Product Specifications
| Item | Specification | ||
| Cisco Nexus 7000 9-Slot Fabric Module | Cisco Nexus 7000 10-Slot Fabric Module | Cisco Nexus 7000 18-Slot Fabric Module | |
| Product compatibility | Supported in the Cisco Nexus 7000 9-Slot Switch chassis | Supported in the Cisco Nexus 7000 10-Slot Switch chassis | Supported in the Cisco Nexus 7000 18-Slot Switch chassis |
| Software compatibility | Cisco NX-OS Software Release 5.2 (minimum requirement) | Cisco NX-OS Software Release 6.0 (minimum requirement) | Cisco NX-OS Software Release 6.0 (minimum requirement) |
| Performance | 110 Gbps per slot per fabric | 110 Gbps per slot per fabric | 110 Gbps per slot per fabric |
| Reliability and availability | • Online insertion and removal (OIR) hot swap | • OIR hot swap | • OIR hot swap |
| MIBs | Supports Simple Network Management Protocol (SNMP) Versions 1, 2c, and 3 (see the Cisco NX-OS Software release notes for details about specific MIB support) | Supports SNMP v1, v2c, and v3 (see the Cisco NX-OS Software release notes for details about specific MIB support) | Supports SNMP v1, v2c, and v3 (see the Cisco NX-OS Software release notes for details about specific MIB support) |
| Network management | Cisco Data Center Network Manager (DCNM) 5.2 | Cisco DCNM 6.0 | Cisco DCNM 6.0 |
| Programming interfaces | • XML
• Scriptable command-line interface (CLI) • Cisco DCNM 5.2 web services |
• XML
• Scriptable CLI • Cisco DCNM 6.0 web services |
• XML
• Scriptable CLI • Cisco DCNM 6.0 web services |
| Physical specifications | • Occupies one fabric module slot in a Cisco Nexus 7000 9-Slot Switch chassis
• Dimensions (H x W x D): 1.75 x 4.5 x 22.5 in. (4.45 x 11.43 x 57.15 cm) • Weight: 5 lb (2.27 kg) |
• Occupies one fabric module slot in a Cisco Nexus 7000 9-Slot Switch chassis
• Dimensions (H x W x D): 1.733 x 14.93 x 7.33 in. (4.4 x 37.92 x 18.62 cm) • Weight: 4 lb (1.8 kg) |
• Occupies one fabric module slot in a Cisco Nexus 7000 9-Slot Switch chassis
• Dimensions (H x W x D): 14.93 x 1.733 x 7.33 in. (37.6 x 4.4 x 18.62 cm) • Weight: 7.5 lb (3.4 kg) |
| Environmental conditions | • Operating temperature: 32 to 104°F (0 to 40°C)
• Operational relative humidity: 5 to 90%, noncondensing • Storage temperature: -40F to 158°F (-40 to 70°C) • Storage relative humidity: 5 to 95%, noncondensing |
||
| Regulatory compliance | • EMC compliance
• FCC Part 15 (CFR 47) (USA) Class A • ICES-003 (Canada) Class A • EN55022 (Europe) Class A • CISPR22 (International) Class A • AS/NZS CISPR22 (Australia and New Zealand) Class A • VCCI (Japan) Class A • KN22 (Korea) Class A • CNS13438 (Taiwan) Class A • CISPR24 • EN55024 • EN50082-1 • EN61000-3-2 • EN61000-3-3 • EN61000-6-1 • EN300 386 |
||
| Environmental standards | • NEBS criteria levels
• SR-3580 NEBS Level 3 (GR-63-CORE, issue 3, and GR-1089-CORE, issue 4) • Verizon NEBS compliance • Telecommunications Carrier Group (TCG) Checklist • Qwest NEBS requirements • Telecommunications Carrier Group (TCG) Checklist • ATT NEBS requirements • ATT TP76200 level 3 and TCG Checklist • ETSI • ETSI 300 019-1-1, Class 1.2 Storage • ETSI 300 019-1-2, Class 2.3 Transportation • ETSI 300 019-1-3, Class 3.2 Stationary Use |
||
| Safety | • UL/CSA/IEC/EN 60950-1
• AS/NZS 60950 |
||
| Warranty | Cisco Nexus 7000 Series Switches come with the standard Cisco 1-Year Limited Hardware Warranty | ||
Software Requirements
The Cisco Nexus 7000 9-Slot Fabric Module is supported in Cisco NX-OS Software. The software version required is Cisco NX-OS Software Release 5.2 or later.
The Cisco Nexus 7000 10-Slot and 18-Slot Fabric Modules are supported in Cisco NX-OS Software. The software version required is Cisco NX-OS Software Release 6.0 or later.
Ordering Information
To place an order, visit the Cisco Ordering homepage. To download software, visit the Cisco Software Center. Table 3 provides ordering information.
Table 3. Ordering Information
| Product Name | Part Number |
| Cisco Nexus 7000 9-Slot Chassis 110Gbps/Slot Fabric Module (and Spare) | N7K-C7009-FAB-2
N7K-C7009-FAB-2= |
| Cisco Nexus 7000 10-Slot Chassis 110Gbps/Slot Fabric Module (and Spare) | N7K-C7010-FAB-2
N7K-C7010-FAB-2= |
| Cisco Nexus 7000 18-Slot Chassis 110Gbps/Slot Fabric Module (and Spare) | N7K-C7018-FAB-2
N7K-C7018-FAB-2= |
