The Cisco Catalyst 9400 Series offers three chassis options and a wide range of line card options (Table 1). It provides a common architecture that can scale up to 400 ports. Cisco StackWise Virtual technology doubles this port density by virtually stacking two Catalyst 9400 modular switches in a single logical switch.

The Catalyst 9400 Series chassis is enterprise optimized with efficient side-to-side airflow and full front accessibility for all removable components, including supervisors, line cards, power supplies and fan tray. The chassis also supports optional rear accessibility for fan trays to enable efficient cable management. Catalyst 9400 Series chassis, supervisor, line cards, powersupply and fan trays have embedded RFID tags which facilitate easy asset and inventory management using commercial RFID readers.

Table 1.             Cisco Catalyst 9400 Series chassis features

¹ Slots 2 and 3 are reserved for supervisor engines only in Cisco Catalyst C9404R; slots 1 and 4 are reserved for line cards.

² Slots 3 and 4 are reserved for supervisor engines only in Cisco Catalyst C9407R; slots 1-2 and 5-7 are reserved for line cards.

³ Slots 5 and 6 are reserved for supervisor engines only in Cisco Catalyst C9410R; slots 1-4 and 7-10 are reserved for line cards.

⁴ Linecards are not supported in the Supervisor slots.

⁵ Max PoE mentioned is as per the current shipping linecard, however chassis is capable ~4800W PoE per slot.

⁶ 80Gbps per line-card slot when used with C9400-SUP-1 and 240Gbps per line-card slot when used with C9400-SUP-1XL, C9400-SUP-1XL-Y.

⁷ 80Gbps per line-card slot when used with C9400-SUP-1 and 120Gbps per line-card slot when used with C9400-SUP-1XL, C9400-SUP-1XL-Y.

⁸ 80Gbps per line-card slot when used with C9400-SUP-1 and 80Gbps per line-card slot when used with C9400-SUP-1XL, C9400-SUP-1XL-Y.

Supervisor configuration

The Catalyst 9400 Series offers an industry-leading supervisor engine built for secure networks, IoT applications, next generation mobility and cloud adoption. Supervisor Engine-1 options (Sup-1, Sup-1XL, Sup-1XL-Y) are built with the latest Unified Access Dataplane 2.0 (UADP2.0) ASIC future-proofed for next generation technologies with its programmable pipeline, microengine capabilities and template-based configurable allocation of Layer 2, Layer 3, forwarding, Access Control Lists (ACLs) and QoS entries.

Table 2.             Cisco Catalyst 9400 Series Supervisor Engine maximum bandwidth per slot

Table 3 lists the minimum software requirements for the Cisco Catalyst 9400 supervisor engine.

Table 3.             Cisco catalyst Supervisor Engine Software Minimum Requirements

Line card configuration options

The Catalyst 9400 offers the ability to mix and match a range of line cards to support numerous LAN access, server connectivity, Small and Medium-sized Business (SMB) or branch-office deployments. The Cisco Catalyst 9400 Series supports the line cards listed in Table 4 by part number.

Table 4.             Cisco Catalyst 9400 Series line cards

The Cisco Catalyst 9400 Series has flexible interface types and port densities that allow you to mix and match network configurations to meet the specific needs of campus networks (Table 5).

Table 5.             Cisco Catalyst 9400 Series Maximum port densities

¹ With max power 260 ports can supply full 90W on all ports concurrently

Specifications

Table 6 lists physical specifications of the Cisco Catalyst 9400 Series chassis.

Table 6.            Physical specifications of Cisco Catalyst 9400 Series chassis

Power supply

There are three modes of operation supported by Cisco Catalyst 9400 power supplies. In all the modes the power supplies can be of different wattage and type whether AC or DC.

Redundant N + N mode

The Cisco Catalyst 9400 Chassis also supports N + N redundancy with N independent input circuits and safeguards against failure of N (+N) of the circuits as opposed to power supply unit failure.

Redundant N + 1 mode

The Cisco Catalyst 9400 Chassis also supports N + 1 redundancy with N independent input circuits and safeguards against failure of one (+1) of the circuits as opposed to power supply unit failure.

Combined mode

In this mode the power available for the entire chassis is equal to the sum of the output power of both of the power supplies multiplied by the share ratio.

P = Power output of one power-supply unit.

Total combined mode power = P + (N-1)^* P^* (share ratio).

Tables 7 describe power supply specification for the Catalyst 9400 Series.

Table 7.             Cisco Catalyst 9400 Series Power supply specifications

Note:

• Output power is per power supply unless otherwise stated.
• Heat-dissipation numbers represent the power conversion losses of the power supply in operation.
• The number of power devices supported depends upon the customer configuration.

Power supply indicators

• Output Fail LED (per unit): RED.
• Input Okay LED (per unit): Green.
• ID LED (per unit): Blue.

Table 8.            Cisco Catalyst 9400 Series power-cord options

Fan trays

Each Cisco Catalyst 9400 Series uses dual serviceable fan trays for cooling. Cisco Catalyst 9400 switches can optionally be accessed from the rear for flexible cable management. The chassis is enterprise closet-optimized with side-to-side airflow. All fan trays are composed of multiple independently controlled fans with N+1 redundancy. If any single fan fails, the system will continue to operate without a degradation in cooling. Speeds of fans change dynamically to compensate for fan failure. Catalyst 9400 Series fans have a barometric sensor, which allows slower fan speed curves at lower altitudes. Catalyst 9400 Series fans also have individual fan Pulse-Wide Modulation (PWM) fine-tuning to reduce variability in fan Revolutions Per Minute (RPM) under throttled conditions. This allows for optimal acoustic performance at 60dB when the system is operating at 50% load.

Figure 2.

Dual serviceable fan tray

Environmental conditions

The Cisco Catalyst 9400 Series require the following conditions:

• Operating temperature
• Normal operating^*temperature and altitudes:

◦     23° to 113°F (-5 to +45°C), up to 6,000 feet (1800 m)

◦     23° to 104°F (-5 to +40°C), up to 10,000 feet (3000 m)

◦     ^*Minimum ambient temperature for cold startup is 0°C

• Short-term^**exceptional conditions:

◦     23° to 131°F (-5 to +55°C), up to 6,000 feet (1800 m)

◦     23° to 122°F (-5 to +50°C), up to 10,000 feet (3000 m)

◦     ^**Not more than following in one-year period: 96 consecutive hours, or 360 hours total, or 15 occurrences

• Storage temperature: -40° to 158°F (-40° to 70°C)
• Relative humidity: 10 to 95 percent, noncondensing
• Operating altitude: -60 to 3000m

Regulatory standards compliance

Table 9 lists the regulatory standards compliance supported by the Cisco Catalyst 9400 Series.

Table 9.            Regulatory standards compliance

MTBF information

Table 10 gives Mean-Time-Between-Failures (MTBF) information for different chassis.

Table 10.          MTBF information

Ordering information

Table 11 lists the ordering information for chassis, power supplies, supervisor engines and memory that are commonly used with the Cisco Catalyst 9400 Series.

Table 11.          Ordering information

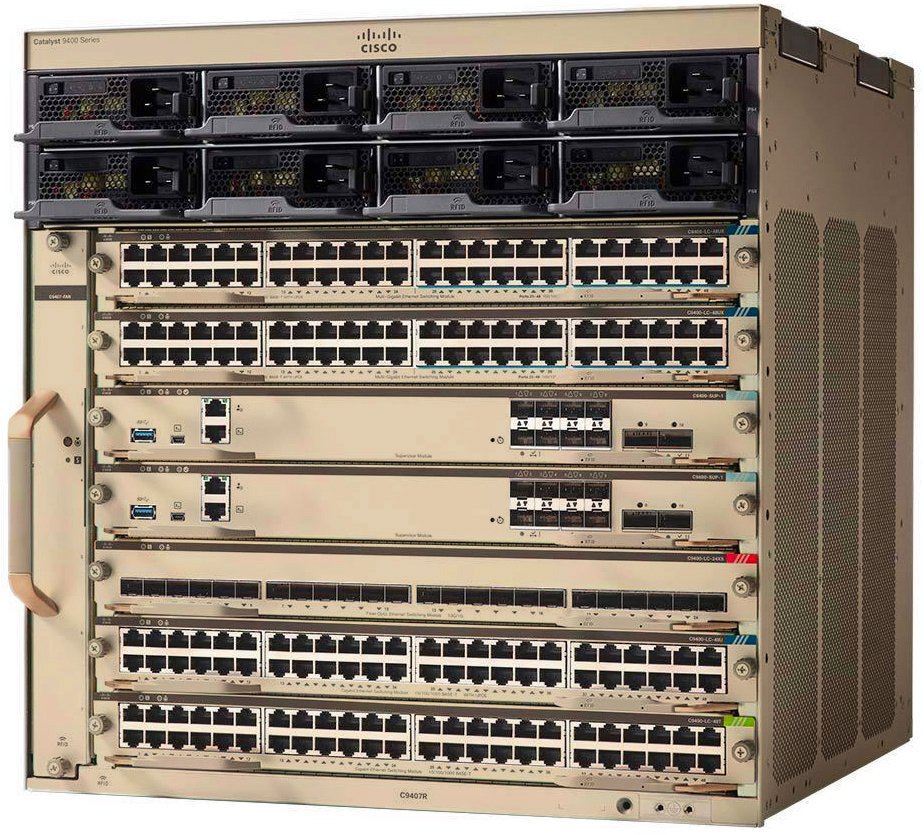

Cisco Catalyst 9400 Series 7 slot chassis # C9407R
