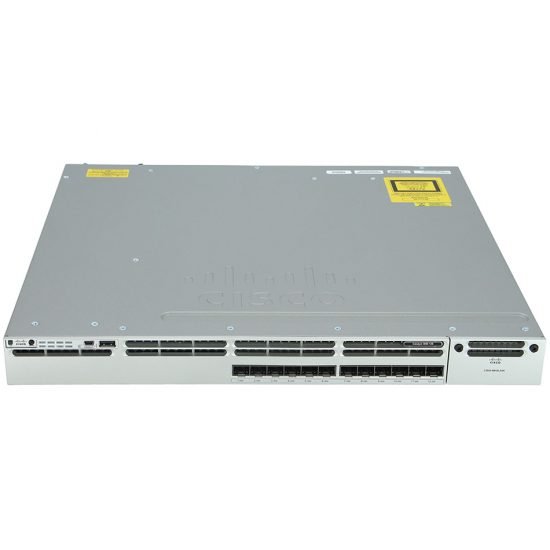

Cisco Catalyst 3850 12 Port 10G Fiber Switch IP Base # WS-C3850-12XS-S

Sale Price: US$  3,345.00  (82.8% OFF)

List Price: US$  19,487.00

Condition: New Sealed

Delivery Time: Exstock

The Cisco Catalyst 3850 Series provides capabilities that ideally suited to support the convergence of wired and wireless access. The new Cisco Unified Access Data Plane (UADP) Application-Specific Integrated Circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility, and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise®-480 technology.

The Cisco Catalyst 3850 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), Cisco Universal Power Over Ethernet (Cisco UPOE®), modular and field-replaceable network modules, RJ-45 and fiber-based downlink interfaces, and redundant fans and power supplies.

  • Integrated wireless controller capability with:

◦     Up to 40G of wireless capacity per switch (48-port RJ45 models)

◦     Support for up to 100 access points and 2000 wireless clients on each switching entity (switch or stack)

  • 24 and 48 10/100/1000Mbps data PoE+ and Cisco UPOE models with Energy-Efficient Ethernet (EEE)
  • 24 and 48 100Mbps/1/2.5/5/10 Gbps Cisco UPOE models with Energy-Efficient Ethernet (EEE)
  • 12- and 24-port 1 Gigabit Ethernet SFP-based models
  • 12- and 24-port 1/10 Gigabit Ethernet SFP+-based models
  • 48-port 1/10 Gigabit Ethernet SFP+ model with 4 fixed 40 Gigabit Ethernet QSFP+ uplinks
  • Cisco StackWise-480 technology provides scalability and resiliency with 480 Gbps of stack throughput[1]
  • Cisco StackPower®technology provides power stacking among stack members for power redundancy1
  • Five optional uplink modules[2]with 4 x Gigabit Ethernet, 2 x 10 Gigabit Ethernet, 4 x 10 Gigabit Ethernet[3], 8 x 10 Gigabit Ethernet4, or 2 x 40 Gigabit Ethernet QSFP+[4] ports
  • Dual redundant, modular power supplies and three modular fans providing redundancy
  • Full IEEE 802.3at (PoE+) with 30W power on all copper ports in 1 Rack Unit (RU) form factor
  • Cisco UPOE with 60W power per port in 1 Rack Unit (RU) form factor
  • IEEE 802.3bz (2.5/5 G/s BASE-T) to go beyond 1 Gb/s with existing Cat5e and Cat6
  • IEEE 802.1ba AV Bridging (AVB) built-in to provide better AV experience for including improved time synchronization and QoS
  • Software support for IPv4 and IPv6 routing, multicast routing, modular Quality of Service (QoS), Flexible NetFlow (FNF), and enhanced security features
  • Single universal Cisco IOS®Software image across all license levels, providing an easy upgrade path for software features
  • Cisco DNA services delivered through Cisco ONESoftware, providing simplified, high-value solutions with license portability and flexibility
  • Support for AES-256 with the powerful MACSEC 256-bit for SFP+ and Multigigabit models and 128-bit encryption algorithm available on all models
  • Enhanced Limited Lifetime Warranty (E-LLW) with Next Business Day (NBD) advance hardware replacement and 90-day access to Cisco Technical Assistance Center (TAC) support

Switch Models and Configurations

All switches ship with one of the five power supplies (350WAC, 715WAC, 750WAC, 1100WAC, or 440WDC)[5]. Figures 1 through 4 show the Cisco Catalyst 3850 Series Switches.

Figure 1.

Cisco Catalyst 3850 Series Switches

Figure 2.

Cisco Catalyst 3850 Series Switches with 12 and 24 1/10 Gigabit Ethernet SFP+ ports

Figure 3.

Cisco Catalyst 3850 Series Switches with 12 and 24 1 Gigabit Ethernet SFP ports

Figure 4.

Cisco Catalyst 3850 Series Switches with 10 Gigabit Ethernet 48 ports

Table 1 shows the Cisco Catalyst 3850 Series configurations.

Table 1.           Cisco Catalyst 3850 Series configurations

Model Total 10/100/1000 or SFP or SFP+ ports Default AC power supply Available PoE power POE budget with 1100W secondary PS StackWise-480 StackPower
WS-C3850-24T 24 350WAC -   Yes Yes
WS-C3850-48T 48
WS-C3850-24P 24 PoE+ 715WAC 435W 1535W
WS-C3850-48P 48 PoE+
WS-C3850-48F 48 PoE+ 1100WAC 800W 1900W
WS-C3850-24U 24 UPOE 1100WAC 800W 1900W
WS-C3850-48U 48 UPOE 1100WAC 800W 1900W
WS-C3850-24XU 24 UPOE (100Mbps/1/2.5/5/10 Gbps) 1100WAC 580W 1680W
WS-C3850-12X48U 48 UPOE (with 12 100Mbps/1/2.5/5/10 Gbps Ports) 1100WAC 630W 1730W
WS-C3850-12S 12 SFP 350WAC
WS-C3850-24S 24 SFP
WS-C3850-12XS 12 1/10G SFP+ 350WAC -
WS-C3850-24XS 24 1/10G SFP+ 715 WAC -
WS-C3850-48XS 48 1/10G SFP+ 750WAC (front to back) -   No No

Network modules

The Cisco Catalyst 3850 Series Switches support five optional network modules for uplink ports. The default switch configuration does not include the network module. At the time of switch purchase the customer has the flexibility to choose from the network modules described in Table 2.

Figure 5 shows the following network modules:

  • 4 x Gigabit Ethernet with Small Form-Factor Pluggable (SFP) receptacles
  • 2 x 10 Gigabit Ethernet with SFP+ or 4 x Gigabit Ethernet with SFP receptacles
  • 4 x 10 Gigabit Ethernet with SFP+ receptacles (supported only on the 48-port Gigabit Ethernet models or on the 12-port or higher 10 Gigabit Ethernet models)

Figure 5.

Network modules with four Gigabit Ethernet, two 10 Gigabit Ethernet SFP+, or four 10 Gigabit Ethernet SFP+ interfaces

Figure 6 shows the following network modules:

  • 8 x 10 Gigabit Ethernet with Small Form-Factor Pluggable+ (SFP+) receptacles
  • 2 x 40 Gigabit Ethernet with Quad Small Form-Factor Pluggable+ (QSFP+) receptacles

Figure 6.

Network modules with two 40 Gigabit Ethernet QSFP+ or eight 10 Gigabit Ethernet SFP+ interfaces

The C3850-NM-4-10G module is supported only on the 48-port Gigabit Ethernet models or on the 12-port or higher 10 Gigabit Ethernet models. The C3850-NM-8x10G and C3850-NM-2x40G modules are supported on the 24-port and 48-port multigigabit switches and also on the 24-port 10G SFP+ switch model. The C3850-NM-4-1G and C3850-NM-2-10G modules are not supported on the 12-port and 24-port SFP+ models.

Table 2.             Network module compatibility matrix

Model Network modules
WS-C3850-24T C3850-NM-4-1G, C3850-NM-2-10G
WS-C3850-48T C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G
WS-C3850-24P C3850-NM-4-1G, C3850-NM-2-10G
WS-C3850-48P C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G
WS-C3850-48F C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G
WS-C3850-24U C3850-NM-4-1G, C3850-NM-2-10G
WS-C3850-48U C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G
WS-C3850-24XU C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G, C3850-NM-8-10G, C3850-NM-2-40G
WS-C3850-12X48U C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G, C3850-NM-8-10G, C3850-NM-2-40G
WS-C3850-12S C3850-NM-4-1G, C3850-NM-2-10G
WS-C3850-24S C3850-NM-4-1G, C3850-NM-2-10G
WS-C3850-12XS C3850-NM-4-10G
WS-C3850-24XS C3850-NM-4-10G, C3850-NM-8-10G, C3850-NM-2-40G
WS-C3850-48XS None

An SFP+ receptacle supports both 10 Gigabit Ethernet and Gigabit Ethernet modules, allowing customers to use their investment in Gigabit Ethernet SFP modules and upgrade to 10 Gigabit Ethernet when business demands change without having to do a comprehensive upgrade of the access switch. In contrast, SFP receptacles can be used only as Gigabit Ethernet ports, as shown in the examples in Table 3.

Table 3.           Network module configuration examples

  Interface options
Network module 10 Gigabit Ethernet SFP+ ports Gigabit Ethernet SFP ports
4 x Gigabit Ethernet 0 4
4 x Gigabit Ethernet/2 x10 Gigabit Ethernet network modules 2 0
1 3
2 2
0 4
4 x Gigabit Ethernet/4 x10 Gigabit Ethernet network modules 4 0
0 4
2 2
3 1
1 3

Dual redundant modular power supplies

The Cisco Catalyst 3850 Series Switches support dual redundant power supplies.[6] The switch ships with one power supply by default, and the second power supply can be purchased at the time of ordering the switch or at a later time. If only one power supply is installed, it should always be in power supply bay 1. The switch also ships with three field-replaceable fans. (See Figure 7.)

Figure 7.

Dual redundant power supplies

Table 4 shows the different power supplies available in these switches and available PoE power.

Table 4.           Power supply models

Model Default power supply Available PoE power
24-port data switch PWR-C1-350WAC -
48-port data switch
24-port PoE switch PWR-C1-715WAC 435W
48-port PoE switch
48-port full PoE switch PWR-C1-1100WAC 800W
24-port UPOE switch PWR-C1-1100WAC 800W
48-port UPOE switch
24-port Multigigabit UPOE switch PWR-C1-1100WAC 580W
48-port Multigigabit UPOE switch PWR-C1-1100WAC 630W
12-port SFP switch PWR-C1-350WAC -
24-port SFP switch
12-port SFP+ switch PWR-C1-350WAC -
24-port SFP+ switch PWR-C1-715WAC -
48-port SFP+ switch (WS-C3850-48XS-S and WS-C3850-48XS-E) PWR-C3-750WAC-R -
48-port SFP+ switch (WS-C3850-48XS-F-S and WS-C3850-48XS-F-E) PWR-C3-750WAC-F -

In addition to the power supplies listed in Table 5, a 440WDC power supply is available as a configuration option and also as a spare (that is, it can be ordered separately) on all switch models. The DC power supply also delivers PoE capabilities for maximum flexibility (refer to Table 6 for available PoE budget with DC power supplies). Customers can mix and match the AC and DC power supplies in the two available power supply slots. Any of these power supplies can be installed in any of the switches.

Table 5.             Available PoE with DC power supply

Model Number of 440WDC power supplies Total available PoE budget
24-port PoE switch 1 220W
2 660W
48-port PoE switch 1 185W
2 625W
24-port Multigigabit UPOE switch 2 360W
48-port Multigigabit UPOE switch 2 410W

Power over Ethernet Plus (PoE+)

In addition to PoE (IEEE 802.3af), the Cisco Catalyst 3850 Series Switches support PoE+ (IEEE 802.3at standard), which provides up to 30W of power per port. The Cisco Catalyst 3850 Series Switches can provide a lower Total Cost of Ownership (TCO) for deployments that incorporate Cisco IP phones, Cisco Aironet®wireless LAN (WLAN) access points, or any IEEE 802.3at-compliant end device. PoE removes the need for wall power to each PoE-enabled device and eliminates the cost for additional electrical cabling and circuits that would otherwise be necessary in IP phone and WLAN deployments. Table 6 shows the power supply combinations required for different PoE needs.

Table 6.             Power supply requirements for PoE and PoE+

  24-port PoE switch 48-port PoE switch
PoE on all ports
(15.4W per port)
One PWR-C1-715WAC One PWR-C1-1100WAC or two PWR-C1-715WAC
PoE+ on all ports
(30W per port)
One PWR-C1-1100WAC or two PWR-C1-715WAC Two PWR-C1-1100WAC or one PWR-C1-1100WAC and one PWR-C1-715WAC

Cisco Universal Power over Ethernet (Cisco UPOE)

Cisco UPOE (Table 7) is a breakthrough technology, offering the following services and benefits.

  • 60W per port to enable a variety of end devices such as Samsung VDI client, BT IP turret systems in trading floors, Cisco Catalyst compact switches in retail/hospitality environments, personal Cisco TelePresence®systems, and physical access control devices
  • High availability for power and guaranteed uninterrupted services, a requirement for critical
    applications (e911)
  • Lowering OpEx by providing network resiliency at lower cost by consolidating backup power into
    the wiring closet
  • Faster deployment of new campus access networking infrastructures by eliminating the need for a power outlet for every endpoint

Table 7.           Power supply requirements for Cisco UPOE

  24-port UPOE switch 48-port UPOE switch 24-port Multigigabit UPOE switch 48-port multigigabit UPOE switch
UPOE (60W per port) on all (24 port switch) or max. 30 ports (48 port switch) One PWR-C1-1100WAC and one PWR-C1-715WAC Two PWR-C1-1100WAC Two PWR-C1-1100WAC Two PWR-C1-1100WAC

Cisco Catalyst Multigigabit Ethernet technology

Cisco Multigigabit Ethernet is a unique Cisco innovation to the new Cisco Catalyst Ethernet access switches. With the enormous growth of 802.11ac and new wireless applications, wireless devices are promoting the demand for more network bandwidth. This creates a need for a technology that supports speeds higher than 1 Gbps on all cabling infrastructure. Cisco Multigigabit technology allows you to achieve bandwidth speeds from 1 Gbps through 10 Gbps over traditional Cat 5e cabling or above. In addition, the Multigigabit ports on select Cisco Catalyst switches support UPOE, which is increasingly important for next-generation workspaces and Internet of Things (IoT) ecosystems.

Cisco Multigigabit technology offers significant benefits for a diverse range of speeds, cable types, and PoE power. The benefits can be grouped into three different areas:

  • Multiple speeds:Cisco Multigigabit technology supports autonegotiation of multiple speeds on switch ports. The supported speeds are 100 Mbps, 1 Gbps, 2.5 Gbps, and 5 Gbps on Cat 5e cable and up to 10 Gbps over Cat 6a cabling.
  • Cable type:The technology supports a wide range of cable types, including Cat 5e, Cat 6, and Cat 6a or above.
  • PoE power:The technology supports PoE, PoE+, and UPOE for all the supported speeds and cable types.

For more information, visit https://www.cisco.com/c/en/us/solutions/enterprise-networks/catalyst-multigigabit-switching/index.html.

SD-Access architecture

What if you could give time back to IT? And provide network access in minutes for any user or device to any application – without compromise?

Cisco Software-Defined Access (SD-Access) is the industry’s first intent-based networking solution for the enterprise, built on the principles of Cisco’s Digital Network Architecture (Cisco DNA). SD-Access provides automated, end-to-end segmentation to separate user, device, and application traffic without the need to redesign the network. SD-Access automates user access policy so organizations can make sure the right policies are established for any user or device with any application across the network. This is accomplished with a single network fabric across LAN and WLAN, which creates a consistent user experience anywhere without compromising on security.

Organizations have many challenges today in managing the network to drive business outcomes. These limitations are due to manual configuration and fragmented tool offerings. SD-Access provides:

  • A transformational management solution that reduces operational expenses and enhances business agility
  • Consistent management of wired and wireless network provisioning and policy
  • Automated network segmentation and group-based policy
  • Contextual insights for fast issue resolution and capacity planning
  • Open and programmable interfaces for integration with third-party solutions

For an overview of key use cases that SD-Access addresses, refer to the SD-Access Solution Overview.

SD-Access licensing

To be able to benefit from the SD-Access architecture, you must purchase an add-on licensing packageSuch licensing package includes the Cisco DNA Essentials and Cisco DNA Advantage options. Add-on licenses have to be purchased for a 3-, 5-, (and hence are also known as term-based licenses). Product SKUs for these packages are given in Table 10 below.

Ordering and managing licenses with smart accounts: Creating smart accounts by using the Cisco Smart Software Manager (SSM) enables you to order devices and licensing packages and also to manage your software licenses from a centralized website. You can set up Cisco SSM to receive daily email alerts and to be notified of expiring add-on licenses that you want to renew. When the license term expires, you can either renew the add-on license to continue using it or deactivate the add-on license and then reload the switch to continue operating with the base license capabilities.

Note:    You are not required to deploy Cisco DNA Center just to use one of the license packages.

Table 8 shows the features included in the Essentials and Advantage packages.

Table 8.          Essentials and Advantage package features

Feature Cisco DNA Essentials Cisco DNA Advantage
Day 0 network bring-up automation
Cisco Network Plug-and-Play application, network settings, device credentials
Element management
Discovery, inventory, topology, software image, licensing, and configuration management
Element management
Patching
Network monitoring
Product Security Incident Response Team (PSIRT) compliance, end-of-life/end-of-sale reporting, telemetry quotient, client 360, device 360, top talkers/ NetFlow/streaming telemetry collection and correlation
Static QoS configuration and monitoring
EasyQoS application
Policy-based automation
SD-Access, group-based policy for access, app prioritization, monitoring, and path selection;
SD-Access with integrated wireless
Network assurance and analytics
Insights gained from analytics and machine learning for the network, clients and applications that cover onboarding, connectivity, and performance

Table 9 shows the product IDs for these licenses.

Table 9.          Essentials and Advantage package product IDs

  Product ID Description
12-port C3850-DNA-E-12 C3850 Cisco DNA Essentials, 12-port term licenses
C3850-DNA-E-12-3Y C3850 Cisco DNA Essentials, 12-port, 3-year term license
C3850-DNA-E-12-5Y C3850 Cisco DNA Essentials, 12-port, 5-year term license
C3850-DNA-A-12 C3850 Cisco DNA Advantage, 12-port term licenses
C3850-DNA-A-12-3Y C3850 Cisco DNA Advantage, 12-port, 3-year term license
C3850-DNA-A-12-5Y C3850 Cisco DNA Advantage, 12-port, 5-year term license
24-port C3850-DNA-E-24 C3850 Cisco DNA Essentials, 24-port term licenses
C3850-DNA-E-24-3Y C3850 Cisco DNA Essentials, 24-port, 3-year term license
C3850-DNA-E-24-5Y C3850 Cisco DNA Essentials, 24-port, 5-year term license
C3850-DNA-A-24 C3850 Cisco DNA Advantage, 24-port term licenses
C3850-DNA-A-24-3Y C3850 Cisco DNA Advantage, 24-port, 3-year term license
C3850-DNA-A-24-5Y C3850 Cisco DNA Advantage, 24-port, 5-year term license
48-port C3850-DNA-E-48 C3850 Cisco DNA Essentials, 48-port term licenses
C3850-DNA-E-48-3Y C3850 Cisco DNA Essentials, 48-port, 3-year term license
C3850-DNA-E-48-5Y C3850 Cisco DNA Essentials, 48-port, 5-year term license
C3850-DNA-A-48 C3850 Cisco DNA Advantage, 48-port term licenses
C3850-DNA-A-48-3Y C3850 Cisco DNA Advantage, 48-port, 3-year term license
C3850-DNA-A-48-5Y C3850 Cisco DNA Advantage, 48-port, 5-year term license
Spares C3850-DNA-E-12= C3850 Cisco DNA Essentials, 12-port term licenses spare
C3850-DNA-A-12= C3850 Cisco DNA Advantage, 12-port term licenses spare
C3850-DNA-E-24= C3850 Cisco DNA Essentials, 24-port term licenses spare
C3850-DNA-A-24= C3850 Cisco DNA Advantage, 24-port term licenses spare
C3850-DNA-E-48= C3850 Cisco DNA Essentials, 48-port term licenses spare
C3850-DNA-A-48= C3850 Cisco DNA Advantage, 48-port term licenses spare

Benefits

Converged wired plus wireless access

The Cisco Catalyst 3850 is the first stackable access switching platform that enables wired plus wireless services on a single Cisco IOS XE Software-based platform. With this, Cisco has pioneered a host of rich capabilities such as high availability based on Stateful Switchover (SSO) on stacking, granular QoS, security, and Flexible NetFlow (FNF) across wired and wireless in a seamless fashion. Also, the wired plus wireless features are bundled into a single Cisco IOS Software image, which reduces the number of software images that users have to qualify/certify before enabling them in their network. The single console port for Command-Line Interface (CLI) management reduces the number of touch points to manage for wired plus wireless services, thereby reducing network complexity, simplifying network operations, and lowering the TCO to manage the infrastructure.

Converged wired plus wireless not only improves wireless bandwidth across the network but also the scale of wireless deployment. Each 48-port Cisco Catalyst 3850 provides 40 Gbps of wireless throughput (20 Gbps on the 24-port/12-port models). This wireless capacity increases with the number of members in the stack. This makes sure that the network can scale with current wireless bandwidth requirements, as dictated by IEEE 802.11n-based access points and with future wireless standards such as IEEE 802.11ac. Additionally, the Cisco Catalyst 3850 distributes the wireless controller functions to achieve better scalability. Each Cisco Catalyst 3850 switch/stack can operate as the wireless controller in two modes (Figure 8):

  • Mobility Agent (MA):This is the default mode in which a Cisco Catalyst 3850 switch ships. In this mode the switch is capable of terminating the CAPWAP tunnels from the access points and providing wireless connectivity to wireless clients. Maintaining wireless client databases and configuring and enforcing security and QoS policies for wireless clients and access points can be enforced in this mode. No additional license on top of IP Base is required to operate in the mobility agent mode.
  • Mobility Controller (MC):In this mode, the Cisco Catalyst 3850 switch can perform all the mobility agent tasks in addition to mobility coordination, Radio Resource Management (RRM), and Cisco CleanAir® coordination within a mobility subdomain. The mobility controller mode can be enabled on the switch CLI. IP Base license level is required when the Cisco Catalyst 3850 switch is acting as the mobility controller. A centrally located Cisco 5508 Wireless LAN Controller (WLC 5508), Cisco Wireless Services Module 2 (WiSM2) (when running AireOS Version 7.3), and Wireless LAN Controller 5760 can also perform this role for larger deployments.
  • With mobility agents located in the wiring closets providing 40 Gbps of wireless per 48-port Gigabit Ethernet RJ45 switch (nx 40 Gbps for a stack of n switches) and mobility controllers managing some of the central wireless functions, the converged access-based wireless deployment provides best-in-class scalability for wireless and significantly improved wireless throughput.

Figure 8.

Mobility Controller (MC) and Mobility Agent (MA)

For more information about Converged Wired plus Wireless Access, refer to the Q&A document here: https://www.cisco.com/c/dam/en/us/products/collateral/switches/catalyst-3850-series-switches/cisco-catalyst-3850-series-switches-faq.pdf.

Distributed intelligent services

Flexible NetFlow (FNF)

Full visibility into the wired plus wireless traffic is achieved because of the access point Control and Provisioning of Wireless Access Points (CAPWAP) tunnel termination on the switch. This helps identify users and user traffic flows in order to identify potential attackers and take corrective action at the access layer before the attack penetrates further into the network. This is achieved using FNF, which monitors every single flow entering and exiting the switch stack for wired and wireless users. It also helps identify the top wired/wireless talkers and enforce appropriate bandwidth provisioning policies.

QoS

The Cisco Catalyst 3850 switch has advanced wired plus wireless QoS capabilities. It uses the Cisco modular QoS command line interface (MQC). The switch manages wireless bandwidth using unprecedented hierarchical bandwidth management starting at the per-access-point level and drilling further down to per-radio, per-service set identification (SSID), and per-user levels. This helps manage and prioritize available bandwidth between various radios and various SSIDs (enterprise, guest, and so on) within each radio on a percentage basis. The switch is also capable of automatically allocating equal bandwidth among the connected users within a given SSID. This makes sure that all users within a given SSID get a fair share of the available bandwidth while being connected to the network. The UADP ASIC enables the hierarchical bandwidth management and fair sharing of bandwidth, thereby providing hardware-based QoS for optimized performance at line-rate traffic.

In addition to these capabilities, the switch is able to do Class of Service (CoS) or Differentiated Services Code Point (DSCP) based queuing, policing, shaping, and marking of wired plus wireless traffic. This enables users to create common policies that can be used across wired plus wireless traffic. The Cisco Catalyst 3850 also supports downloadable policy names from the Cisco Identity Services Engine (ISE) when a user successfully authenticates to the network using the ISE.

Security

The Cisco Catalyst 3850 provides a rich set of security features for wired plus wireless users. Features such as IEEE 802.1x, port security, Dynamic Host Configuration Protocol (DHCP) Snooping and Guard, Dynamic ARP Inspection, RA Guard, IP Source Guard, Control Plane Protection (CoPP), Wireless Intrusion Prevention Systems (WIPSs), and so on enable protection against unauthorized users and attackers. With a variety of wired plus wireless users connecting to the network, the switch supports session-aware networking, in which each device connected to the network is identified as one session, and unique Access Control Lists (ACLs) and/or QoS policies can be defined and applied using the ISE for each of these sessions, providing better control on the devices connecting to the network.

AES-256 MACsec encryption is the IEEE 802.1AE standard for authenticating and encrypting packets between switches and endpoints. The Cisco Catalyst 3850 Series switches support 256-bit (SFP+ and Multigigabit models only) and 128-bit Advanced Encryption Standard (AES) on all ports at all speeds, providing the most secure link encryption.

Resiliency

Cisco StackWise-480 technology

Cisco StackWise-480 technology is built on the highly successful industry-leading StackWise® technology, which is a premium stacking architecture[7]. StackWise-480 has a stack bandwidth of 480 Gbps. StackWise - 480 uses Cisco IOS Software SSO for providing resiliency within the stack. The stack behaves as a single switching unit that is managed by an “active” switch elected by the member switches.

The active switch automatically elects a standby switch within the stack. The active switch creates and updates all the switching/routing/wireless information and constantly synchronizes that information with the standby switch. If the active switch fails, the standby switch assumes the role of the active switch and continues to the keep the stack operational. Access points continue to remain connected during an active-to-standby switchover.

A working stack can accept new members or delete old ones without service interruption. StackWise-480 creates a highly resilient single unified system of up to nine switches, providing simplified management using a single IP address, single Telnet session, single CLI, autoversion checking, autoupgrading, autoconfiguration, and more. StackWise-480 also enables local switching in Cisco Catalyst 3850 Series Switches.

Cisco StackPower technology

The Cisco Catalyst 3850 Series uses the Cisco StackPower[8] technology present on the Cisco Catalyst 3850 Series. StackPower is an innovative power interconnect system that allows the power supplies in a stack to be shared as a common resource among all the switches. Cisco StackPower unifies the individual power supplies installed in the switches and creates a pool of power, directing that power where it is needed. Up to four switches[9]can be configured in a StackPower stack with the special connector at the back of the switch using the StackPower cable, which is different than the StackWise-480 cables. (See Figure 9.)

Figure 9.

StackWise-480 and StackPower connectors

StackPower can be deployed in either power-sharing mode or redundancy mode. In power-sharing mode, the power of all the power supplies in the stack is aggregated and distributed among the switches in the stack. In redundant mode, when the total power budget of the stack is calculated, the wattage of the largest power supply is not included. That power is held in reserve and used to maintain power to switches and attached devices when one power supply fails, enabling the network to operate without interruption. Following the failure of one power supply, the StackPower mode becomes power sharing.

StackPower allows customers to simply add one extra power supply in any switch of the stack and either provide power redundancy for any of the stack members or simply add more power to the shared pool. StackPower eliminates the need for an external redundant power system or installation of dual power supplies in all the stack members. StackPower is available in LAN Base license level (or higher). For LAN Base, cables need to be purchased separately.

Foundation for Open Network Environment

The heart of the Cisco Catalyst 3850 is the UADP ASIC with programmability for future features and intelligence with investment protection. The new ASIC provides the foundation for converged APIs across wired and wireless, Cisco Open Network Environment, Software-Defined Networking (SDN) readiness, and OnePK SDK through software updates over the product lifetime.

Software features and services on Cisco Catalyst 3850 Series Switches

Software services supported on the Cisco Catalyst 3850 Series Switches can be classified into five broad categories:

  • Ease of operations
  • Advanced security features
  • Resiliency
  • Application visibility and control
  • Audio Video Bridging

Ease of operations

The Cisco Catalyst 3850 helps reduce the operating costs through:

  • Cisco Catalyst SmartOperations
  • Easy-to-use deployment and control features
  • Efficient switch operations
  • Network management tools

Cisco Catalyst SmartOperations

Cisco Catalyst SmartOperations is a comprehensive set of capabilities that simplify LAN deployment, configuration, and troubleshooting. In addition to adaptive, always-on technologies such as StackWise-480 and StackPower, Cisco Catalyst SmartOperations enable zero-touch installation and replacement of switches, fast upgrade, and ease of troubleshooting with reduced operational cost. Features includes Smart Install, Auto Smartports, Smart Configuration, and Smart Troubleshooting to enhance operational excellence:

  • Cisco Smart Install is a transparent plug-and-play technology to configure the Cisco IOS Software image and switch configuration without user intervention. Smart Install utilizes dynamic IP address allocation and the assistance of other switches to facilitate installation, providing transparent network plug and play.
  • Cisco Auto Smartports provide automatic configuration as devices connect to the switch port, allowing autodetection and plug and play of the device onto the network.
  • Cisco Smart Troubleshooting is an extensive array of debug diagnostic commands and system health checks within the switch, including Generic Online Diagnostics (GOLD) and Onboard Failure Logging (OBFL).
  • Embedded Event Manager (EEM) is a powerful and flexible feature that provides real-time network event detection and onboard automation. Using EEM, customers can adapt the behavior of their network devices to align with their business needs. This feature requires the IP Base feature set.

Easy-to-use deployment and control features

  • User experience:

◦     IP Service-Level Agreements (SLAs) enable customers to assure new business-critical IP applications, as well as IP services that utilize data, voice, and video, in an IP network. This feature requires the IP Services feature set.

◦     DHCP autoconfiguration of multiple switches through a boot server eases switch deployment.

◦     Automatic QoS (AutoQoS) simplifies QoS configuration in Voice over IP (VoIP) networks by issuing interface and global switch commands to detect Cisco IP phones, classify traffic, and help enable egress queue configuration.

◦     Autonegotiation on all ports automatically selects half- or full-duplex transmission mode to optimize bandwidth.

◦     Automatic media-dependent interface crossover (MDIX) automatically adjusts transmit and receive pairs if an incorrect cable type (crossover or straight through) is installed.

◦     AV Bridging provides reliable time synchronized transmission with no pops or clicks or video dropouts.

  • Simplified configuration and connectivity:

◦     Dynamic Trunking Protocol (DTP) facilitates dynamic trunk configuration across all switch ports.

◦     Port Aggregation Protocol (PAgP) automates the creation of Cisco Fast EtherChannel groups or Gigabit EtherChannel groups to link to another switch, router, or server.

◦     Link Aggregation Control Protocol (LACP) allows the creation of Ethernet channeling with devices that conform to IEEE 802.3ad. This feature is similar to Cisco EtherChannel technology and PAgP.

◦     Unidirectional Link Detection Protocol (UDLD) and aggressive UDLD allow unidirectional links caused by incorrect fiber-optic wiring or port faults to be detected and disabled on fiber-optic interfaces.

◦     Cisco VLAN Trunking Protocol (VTP) Version 3 supports dynamic VLANs and dynamic trunk configuration across all switches.

◦     AV Bridging provides reliable A/V streaming without the need for the installer to perform extensive hand tuning of the network.

  • Efficient switch operation:

◦     Switching Database Manager (SDM) templates, VLAN template (specific to LAN Base license level), and advanced template allow the administrator to automatically optimize the Ternary Content-Addressable Memory (TCAM) allocation to the desired features based on deployment-specific requirements.

◦     Local proxy Address Resolution Protocol (ARP) works in conjunction with private VLAN edge to minimize broadcasts and maximize available bandwidth.

◦     Stacking master configuration management with Cisco StackWise-480 technology helps make sure that all switches are automatically upgraded when the master switch receives a new software version. Automatic software version checking and updating help ensure that all stack members have the same software version.

◦     Trivial File Transfer Protocol (TFTP) reduces the cost of administering software upgrades by downloading from a centralized location.

◦     Network Timing Protocol (NTP) provides an accurate and consistent timestamp to all intranet switches.

  • Multicast:

◦     Optimized multicast for wired plus wireless: Cisco Catalyst 3850 offers greater multicast efficiency by receiving only one multicast stream and replicating it for all connected wired plus wireless devices connected to that switch.

◦     Internet Group Management Protocol (IGMP) v1, v2, v3 snooping for IPv4: Multicast Listener Discovery (MLD) v1 and v2 snooping provides fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requestors.

  • Monitoring:

◦     Remote Switch Port Analyzer (RSPAN) allows administrators to remotely monitor ports in a Layer 2 switch network from any other switch in the same network.

◦     For enhanced traffic management, monitoring, and analysis, the Embedded Remote Monitoring (RMON) software agent supports four RMON groups (history, statistics, alarms, and events).

◦     Layer 2 traceroute eases troubleshooting by identifying the physical path that a packet takes from source to destination.

◦     Wireless RF management provides both real-time and historical information about RF interference affecting network performance across controllers using systemwide Cisco CleanAir technology integration.

Efficient switch operation

Cisco Catalyst 3850 Series Switches, designed and engineered by Cisco, provide optimum power-saving, EEE (on RJ45 ports), low-power operations for industry best-in-class power management and power consumption capabilities. The Cisco Catalyst 3850 ports are capable of reduced power modes so that ports not in use can move into a lower power utilization state. Other efficient switch operation features are:

  • Cisco Discovery Protocol Version 2 allows the Cisco Catalyst 3850 Series Switches to negotiate a more granular power setting when connecting to a Cisco powered device such as IP phones or access points than what is provided by IEEE classification.
  • Per-port power consumption command allows customers to specify maximum power setting on an individual port. Per-port PoE power sensing measures actual power being drawn, enabling more intelligent control of powered devices.
  • The PoE MIB provides proactive visibility into power usage and allows customers to set different power-level thresholds.

Environmental responsibility

Organizations may choose to turn off access point radios to reduce power consumption during off-peak hours. The integrated wireless LAN controller avoids the deployment of additional devices in the network.

Network management tools

The Cisco Catalyst 3850 Series Switches offer both a superior CLI for detailed configuration and Cisco Prime infrastructure for unified wired plus wireless management. Prime infrastructure provides day 0 and ongoing provisioning, ongoing monitoring and maintenance, configuration templates, and device and user 360-degree views and serves as the FNF collector for user traffic views using the Prime Assurance Manager module.

For detailed information about Cisco Prime infrastructure, go to https://www.cisco.com/en/US/products/ps12239/index.html.

Advanced Security Features

Cisco Catalyst 3850 Series Switches support advanced security features including but not limited to:

  • Protection against attackers:

◦     Port security secures the access to an access or trunk port based on MAC address. It limits the number of learned MAC addresses to deny MAC address flooding.

◦     DHCP snooping prevents malicious users from spoofing a DHCP server and sending out bogus addresses. This feature is used by other primary security features to prevent a number of other attacks such as ARP poisoning.

◦     Dynamic ARP inspection (DAI) helps ensure user integrity by preventing malicious users from exploiting the insecure nature of ARP.

◦     IP source guard prevents a malicious user from spoofing (that is, taking over) another user’s IP address by creating a binding table between the client’s IP and MAC address, port, and VLAN, and by using it to selectively block bogus packets.

◦     The Unicast Reverse Path Forwarding (uRPF) feature helps mitigate problems caused by the introduction of malformed or forged (spoofed) IP source addresses into a network by discarding IP packets that lack a verifiable IP source address.

◦     Bidirectional data support on a SPAN port allows the Cisco Intrusion Detection System (IDS) to take action when an intruder is detected.

  • User authentication:

◦     Flexible authentication that supports multiple authentication mechanisms, including 802.1X, MAC authentication bypass, and web authentication using a single, consistent configuration.

◦     RADIUS change of authorization and downloadable calls for comprehensive policy management capabilities.

◦     Private VLAN edge restricts traffic between hosts in a switch by segregating traffic at Layer 2, turning a broadcast segment into a nonbroadcast multiaccess-like segment. Private VLAN edge provides security and isolation between switch ports, which helps ensure that users cannot snoop on other users’ traffic.

◦     Multidomain authentication allows an IP phone and a PC to authenticate on the same switch port while placing them on appropriate voice and data VLAN.

◦     MAC address notification allows administrators to be notified of users added to or removed from the network.

◦     Mobility and security for secure, reliable wireless connectivity and consistent end-user experience. Increased network availability through proactive blocking of known threats.

◦     IGMP filtering provides multicast authentication by filtering out nonsubscribers and limits the number of concurrent multicast streams available per port.

  • ACLs:

◦     Cisco security VLAN ACLs on all VLANs prevent unauthorized data flows from being bridged within VLANs.

◦     Cisco standard and extended IP security router ACLs define security policies on routed interfaces for control-plane and data-plane traffic. IPv6 ACLs can be applied to filter IPv6 traffic.

◦     Port-based ACLs for Layer 2 interfaces allow security policies to be applied on individual switch ports.

  • Device access:

◦     Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3) provide network security by encrypting administrator traffic during Telnet and SNMP sessions. SSH Protocol, Kerberos, and the cryptographic version of SNMPv3 require a special cryptographic software image because of U.S. export restrictions.

◦     TACACS+ and RADIUS authentication facilitates centralized control of the switch and restricts unauthorized users from altering the configuration.

◦     Multilevel security on console access prevents unauthorized users from altering the switch configuration.

  • Bridge Protocol Data Unit (BPDU) Guard shuts down Spanning Tree PortFast-enabled interfaces when BPDUs are received to avoid accidental topology loops.
  • Spanning Tree Root Guard (STRG) prevents edge devices not in the network administrator’s control from becoming Spanning Tree Protocol root nodes.
  • Wireless end-to-end security offers CAPWAP-compliant DTLS encryption to make sure of encryption between access points and controllers across remote WAN/LAN links.

Resiliency

Borderless networks enable enterprise mobility and business-grade video services. Industry’s first unified network (wired plus wireless) location services enable tracking of mobile assets and the users of those assets for both wired plus wireless devices. The true borderless experience is enabled by the following feature sets in the Cisco Catalyst 3850 Series Switches:

  • High availability
  • High-performance IP routing
  • Superior QoS

High availability

In addition to StackWise-480 and StackPower,[10] the Cisco Catalyst 3850 Series supports high-availability features including but not limited to the following:

  • Cross-Stack EtherChannel provides the ability to configure Cisco EtherChannel technology across different members of the stack for high resiliency.
  • Flexlink provides link redundancy with convergence time less than 100ms.
  • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) provides rapid spanning-tree convergence independent of spanning-tree timers and also offers the benefit of Layer 2 load balancing and distributed processing.
  • Per-VLAN Rapid Spanning Tree (PVRST+) allows rapid spanning-tree (IEEE 802.1w) reconvergence on a per-VLAN spanning-tree basis, providing simpler configuration than MSTP. In both MSTP and PVRST+ modes, stacked units behave as a single spanning-tree node.
  • Switch-port autorecovery (“err-disable” recovery) automatically attempts to reactivate a link that is disabled because of a network error.

High-performance IP routing

The Cisco Express Forwarding hardware routing architecture delivers extremely high-performance IP routing in the Cisco Catalyst 3850 Series Switches:

  • IP unicast routing protocols (static, Routing Information Protocol Version 1 [RIPv1], and RIPv2, RIPng, Enhanced Interior Gateway Routing Protocol [EIGRP] stub) are supported for small-network routing applications with the IP Base feature set. Limited static routing with the LAN Base feature set. Equal-cost routing facilitates Layer 3 load balancing and redundancy across the stack.
  • Advanced IP unicast routing protocols (Open Shortest Path First [OSPF], EIGRP, Border Gateway Protocol Version 4 [BGPv4], and Intermediate System-to-Intermediate System Version 4 [IS-ISv4]) are supported for load balancing and constructing scalable LANs. IPv6 routing (OSPFv3, EIGRPv6) is supported in hardware for maximum performance. OSPF for routed access is included in the IP Base image. The IP Services feature set is required for full OSPF, EIGRP, BGPv4, and IS-ISv4.
  • Policy-Based Routing (PBR) allows superior control by facilitating flow redirection regardless of the routing protocol configured. The IP Base feature set is required for PBR. Virtual Routing and Forwarding (VRF)-Lite enables a service provider to support two or more VPNs, with overlapping IP addresses. The IP Services feature set is required for VRF-Lite.
  • Protocol-Independent Multicast (PIM) for IP multicast routing is supported, including PIM Sparse Mode (PIM‑SM), PIM Dense Mode (PIM-DM), PIM sparse-dense mode, and Source-Specific Multicast (SSM). The IP Services feature set is required.
  • IPv6 addressing is supported on interfaces with appropriate show commands for monitoring and troubleshooting.

Superior QoS

The Cisco Catalyst 3850 Series offers Gigabit Ethernet speed with intelligent services that keep traffic flowing smoothly, even at 10 times the normal network speed. Industry-leading mechanisms for cross-stack marking, classification, and scheduling deliver superior performance for data, voice, and video traffic, all at wire speed.

The following are some of the QoS features supported in the Cisco Catalyst 3850 Series Switches:

  • Granular wireless bandwidth management and fair sharing use Cisco’s proven Cisco IOS Software and UADP ASIC technology to provide hierarchical bandwidth management at line rate (per access point, per radio, per SSID, per client-based policies). Fair sharing across the users within an SSID makes sure that no single user is starved because of other heavy-hitting users. Fair sharing is automatically enabled for wireless at user level as well as SSID level.
  • 802.1p CoS and DSCP field classification is provided, using marking and reclassification on a per-packet basis by source and destination IP address, MAC address, or Layer 4 Transmission Control Protocol/User Datagram Protocol (TCP/UDP) port number.
  • Shaped Round Robin (SRR) scheduling helps ensure differential prioritization of packet flows by intelligently servicing the ingress queues and egress queues. Weighted Tail Drop (WTD) provides congestion avoidance at the ingress and egress queues before a disruption occurs. Strict priority queuing helps ensure that the highest priority packets are serviced ahead of all other traffic.
  • The Cisco Committed Information Rate (CIR) function provides bandwidth in increments as low as 8 Kbps.
  • Rate limiting is provided based on source and destination IP address, source and destination MAC address, Layer 4 TCP/UDP information, or any combination of these fields, using QoS ACLs (IP ACLs or MAC ACLs), class maps, and policy maps.
  • Eight egress queues per port for wired traffic and four egress queues for wireless help enable differentiated management of different traffic types across the stack for wired traffic. Up to 2000 aggregate policers are available per switch.

Application visibility and control using Flexible NetFlow

Cisco IOS Software FNF is the next generation in flow visibility technology, allowing optimization of the network infrastructure, reducing operation costs, and improving capacity planning and security incident detection with increased flexibility and scalability. The Cisco Catalyst 3850 provides optimized application visibility with FNF across wired plus wireless. The switch is capable of up to 48,000 flow entries on 48-port models and up to 24,000 flow entries on 12-port and 24-port models across wired plus wireless. With UADP ASIC, Cisco Catalyst 3850 delivers next-generation flow technology with unprecedented flexibility and comprehensive visibility extending from Layer 2 (MAC and VLAN) to Layer 4 (TCP/UDP) flags and so on across wired plus wireless traffic. The Cisco Catalyst 3850 switch is medianet capable to provide visibility and troubleshooting capabilities across wired plus wireless video traffic. Specific medianet features will be enabled in future software updates.

The flow data collected by FNF can be exported to an external collector for analysis and reporting or tracked by the EEM. The Cisco Catalyst 3850 enables powerful on-box and customizable event correlation and policy actions with EEM, allowing the switches to trigger customized event alarms or policy actions when the predefined condition is met. With no external appliance required, customers are able to use existing infrastructure to perform traffic monitoring, making traffic analysis economical even on a large IP network.

Details about Cisco FNF are available at https://www.cisco.com/en/US/prod/collateral/iosswrel/ps6537/ps6555/ps6601/ps6965/product_data_sheet0900aecd804b590b.html.

High-performance video over wireless integrates Cisco VideoStream technology to optimize the delivery of video applications across the WLAN.

Wired plus wireless IP telephony supports unified communications for improved collaboration through messaging, presence, and conferencing and supports all Cisco Unified Communications wireless IP phones for cost-effective, real-time voice service.

Audio video bridging

With Cisco IOS® XE Software Release 16.3, Cisco Catalyst 3850 Multigigabit and 3850 10G SFP+ now support the IEEE 802.1 AVB standard. This standard provided the means for highly reliable delivery of low-latency, time-synchronized AV streaming services through Layer 2 Ethernet networks. The standard also makes it easier to integrate new services and for AV equipment from different vendors to interoperate. Whether the AV endpoint connections are analog or are inflexible digital one to one, the network transport enables many-to-many transparent plug-and-play connections for multiple AV endpoints.

Benefits

  • Improves quality of experience by lowering jitter and latency for time-synchronized delivery of high-quality AV
  • Provides scalability of applications across networked deployments, including expansive and complex AV infrastructure
  • Lowers Total Cost of Ownership (TCO) with reduced cabling (lowers CapEx) and no license fees (lowers OpEx)

*For more details about AVB and specific models supported, check https://www.cisco.com/go/avb.

Deployment options

Campus

In a campus-type deployment, operating the Cisco Catalyst 3850 in the mobility agent mode and centralizing the mobility controller functionality in a WLC 5760, WLC 5508, or WiSM2 helps achieve better scalability and performance. The Cisco Catalyst 3850 provides CAPWAP termination for access points, uniform policy enforcement for wireless clients, better wireless bandwidth, and uniform Cisco IOS Software-based configuration and monitoring for wired plus wireless features. The mobility controller provides central mobility, RRM, and CleanAir coordination.

Backward compatibility with traditional centralized wireless deployment mode on the WLC 5508, WiSM2, and WLC 5760 helps ensure that customers can migrate to the Cisco Catalyst 3850-based converged access approach in phases, providing a continued controller for existing access points. This migration also provides investment protection on the existing wireless controller infrastructure. A phased adoption of the new Cisco Catalyst 3850 helps ensure that migration to the converged access mode of wireless is seamless. Figure 10 shows a Cisco Catalyst 3850 Series Switch in a campus-type deployment.

Figure 10.

Mobility Controller (MC) and Mobility Agent (MA)

Branch

The Cisco Catalyst 3850 is optimized for branch deployments when it operates in mobility controller mode. In this mode, not only can the switch terminate CAPWAP tunnels from the access points and provide client connectivity, it can also manage mobility within the branch. This eliminates the need for a local controller in every branch in addition to the access-layer switches. Also, complete visibility into the wired plus wireless traffic means that the WAN router can prioritize the right wired plus wireless traffic in and out of the branch. Figure 11 shows a Cisco Catalyst 3850 in a branch access type deployment.

Figure 11.

Deploying the Cisco Catalyst 3850 Series for branch access

The new 12-port and 24-port SFP+ or SFP-based Cisco Catalyst 3850 models as well as the nonstackable 48-port SFP+ model can also be used in the branch to aggregate traffic from smaller access switches through fiber links for more secure and EMI-sensitive deployments (Figure 12).

Figure 12.

Deploying mixed copper and fiber connections with a Cisco Catalyst 3850 stack in the branch

Specifications

Switch performance

Table 10 shows the Cisco Catalyst 3850 Series Switches performance specifications.

Table 10.        Cisco Catalyst 3850 Series performance specifications

Performance numbers for all switch models
Switching capacity 176 Gbps on 48-port Gigabit Ethernet model

92 Gbps on 24-port Gigabit Ethernet model

68 Gbps on 12-port Gigabit Ethernet model

640 Gbps on 24-port Multigigabit Ethernet model*

472 Gbps on 48-port Multigigabit Ethernet model

1280 Gbps on 48-port 10 Gigabit Ethernet SFP+ model*

640 Gbps on 24-port 10 Gigabit Ethernet SFP+ model*

320 Gbps on 12-port 10 Gigabit Ethernet SFP+ model*

Stacking bandwidth 480 Gbps
Total number of MAC addresses 32,000
Total number of IPv4 routes (ARP plus learned routes) 24,000
FNF entries 48,000 flow on 48-port Gigabit Ethernet models

24,000 flows on 12-port and 24-port Gigabit Ethernet models

96,000 flows on 48-port 10 Gigabit Ethernet SFP+ model

48,000 flows on 24-port 10 Gigabit Ethernet SFP+ model

24,000 flows on 12-port 10 Gigabit Ethernet SFP+ model

DRAM 4 GB (8 GB on 48-port SFP+ model)
Flash 2 GB (4 GB on 12-port and 24-port SFP+ models, 8 GB on 48-port SFP+ model)
VLAN IDs 4,000
Total Switched Virtual Interfaces (SVIs) 1,000
Jumbo frame 9198 bytes
Total routed ports per 3850 stack 208
Wireless
Number of access points per switch/stack 100
Number of wireless clients per switch/stack 2000
Total number of WLANs per switch 64
Wireless bandwidth per switch Up to 40 Gbps on 48-port Gigabit Ethernet model

Up to 20 Gbps on 24-port Gigabit Ethernet model

Supported Aironet access point series 3600, 3500, 2600, 1600, 1260, 1140, 1040
Forwarding rate of switch models (with 2 x 10 Gigabit + 2 x 1 Gigabit Ethernet uplinks for 12-port and 24-port models and 4 x 10 Gigabit Ethernet uplinks for 48‑port models)
Model Forwarding rate
WS-C3850-12S 50.5 Mpps
WS-C3850-24T

WS-C3850-24P

WS-C3850-24S

68.4 Mpps
WS-C3850-48T

WS-C3850-48P

WS-C3850-48F

130.95 Mpps
WS-C3850-24XU 500 Mpps (80B packets)
WS-C3850-12X48U 460 Mpps (64B packets)
WS-C3850-12XS 227.28 Mpps
WS-C3850-24XS 454.55 Mpps
WS-C3850-48XS 909 Mpps

Dimensions, weight, acoustic, mean time between failures, and environmental range specifications for Cisco Catalyst 3850 Series Switches

Table 11 shows dimensions, weight, acoustic, Mean Time Between Failure (MTBF), and environmental range. Weight does not include an uplink FRU. Weight includes the chassis assembly as it is shipped (with fans), one power supply and, and one power supply slot blank.

Table 11.          Dimensions, weight, acoustic, MTBF, and environmental range[11]

Dimensions (H x W x D) Inches Centimeters
WS-C3850-12S

WS-C3850-24S

WS-C3850-24T

WS-C3850-24P

WS-C3850-48T

WS-C3850-48P

1.75 x 17.5 x 17.7 4.45 x 44.5 x 45.0
WS-C3850-48F

WS-C3850-48U

WS-C3850-24U

WS-C3850-24XU

WS-C3850-12X48U

1.75 x 17.5 x 19.2 4.45 x 44.5 x 48.8
WS-C3850-12XS

WS-C3850-24XS

1.75 x 17.5 x 17.7 4.45 X 44.5 x 45.0
WS-C3850-48XS 1.75 x 17.5 x 20.1 4.45 X 44.5 x 51.1
Weight Pounds Kilograms
WS-C3850-12S 15.48 7.02
WS-C3850-24S 15.5 7.03
WS-C3850-24T 15.9 7.2
WS-C3850-24P 16.3 7.4
WS-C3850-24U 16.5 7.5
WS-C3850-48T 17.0 7.7
WS-C3850-48P 17.4 7.9
WS-C3850-48F 17.6 8.0
WS-C3850-48U 17.6 8.0
WS-C3850-24XU 17.6 8.0
WS-C3850-12X48U 17.6 8.0
WS-C3850-12XS 12.9 5.8
WS-C3850-24XS 13.5 6.1
WS-C3850-48XS 16.42 7.45
C3850-NM-4-1G 0.66 0.30
C3850-NM-2-10G 0.71 0.32
C3850-NM-4-10G 0.75 0.34
C3850-NM-8-10G 0.74 0.34
C3850-NM-2-40G 0.62 0.28
MTBF hours
WS-C3850-12S 315,840
WS-C3850-24S 300,760
WS-C3850-24T 303,230
WS-C3850-24P 269,450
WS-C3850-24U 237,310
WS-C3850-48T 303,660
WS-C3850-48P 241,050
WS-C3850-48F 241,050
WS-C3850-48U 205,110
WS-C3850-24XU 203,150
WS-C3850-12X48U 202,030
WS-C3850-12XS 371,440
WS-C3850-24XS 307,990
WS-C3850-32XS 307,990
WS-C3850-48XS 286,900
PWR-C1-350WAC 580,710
PWR-C1-715WAC 664,055
PWR-C1-1100WAC 392,174
PWR-C1-440WDC 469,350
C3850-NM-4-1G 7,052,100
C3850-NM-2-10G 4,315,970
C3850-NM-4-10G 3,835,330
C3850-NM-8-10G 6,544,410
C3850-NM-2-40G 9,303,100
Environmental ranges
With AC power supply

Operating environment and altitude

Normal operating temperature* and altitudes:

●  -5ºC to +45ºC, up to 5000 feet (1500m)

●  -5ºC to +40ºC, up to 10,000 feet (3000m)

* Minimum ambient temperature for cold start is 32°F (0°C)

Short-term* exceptional conditions:

●  -5ºC to +50ºC, up to 5000 feet (1500m)

●  -5ºC to +45ºC, up to 10,000 feet (3000m)

●  -5ºC to +45ºC, at sea level with single fan failure

* Not more than following in one-year period: 96 consecutive hours, or 360 hours total, or 15 occurrences.

With DC power supply

Operating environment and altitude (NEBS)

Normal operating temperature and altitudes:

●  -5ºC to +45ºC, up to 6000 feet (1800m)

●  -5ºC to +40ºC, up to 10,000 feet (3000m)

●  -5ºC to +35ºC, up to 13,000 feet (4000m)

Short-term* exceptional conditions:

●  -5ºC to +55ºC, up to 6000 feet (1800m)

●  -5ºC to +50ºC, up to 10,000 feet (3000m)

●  -5ºC to +45ºC, up to 13,000 feet (4000m)

●  -5ºC to +45ºC, at sea level with single fan failure

*Not more than following in one-year period: 96 consecutive hours, or 360 hours total, or 15 occurrences.

Relative humidity 10% to 95%, noncondensing
Acoustic noise

Measured per ISO 7779 and declared per ISO 9296

Bystander positions operating to an ambient temperature of 25°C

With AC or DC power supply (with 24 PoE+ ports loaded):

●  LpA: 43dB typical, 45dB maximum

●  LwA: 5.2B typical, 5.5B maximum

Typical: Noise emission for a typical configuration

Maximum: Statistical maximum to account for variation in production

Storage environment Temperature: -40ºC to 70ºC

Altitude: 15,000 ft

Vibration Operating: 0.41Grms from 3 to 500Hz with spectral break points of 0.0005 G2/Hz at 10Hz and 200Hz 5dB/octave roll off at each end.
Nonoperating: 1.12Grms from 3 to 500Hz with spectral break points of 0.0065 G2/Hz at 10Hz and 100Hz 5dB/octave roll off at each end.
Shock Operating: 30G, 2ms half sine
Nonoperating: 55G, 10ms trapezoid

Connectors for Cisco Catalyst 3850 Series

Table 12 shows the supported connectors.

Table 12.          Connectors

Connectors and cabling ●  1000BASE-T ports: RJ-45 connectors, 4-pair Cat-5E UTP cabling

●  Multigig-T ports: RJ-45 connectors, 4-pair Cat-5E, Cat-6, Cat6A UTP cabling

●  1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Cat-5E UTP cabling

●  100BASE-FX, 1000BASE-SX, -LX/LH, -ZX, -BX10, DWDM and CWDM SFP transceivers: LC fiber connectors (single-mode or multimode fiber)

●  10GBASE-SR, LR, LRM, ER, ZR, DWDM SFP+ transceivers: LC fiber connectors (single-mode or
multimode fiber)

●  CX1 cable assemblies: SFP+ connector

●  Cisco StackWise-480 stacking ports: copper-based Cisco StackWise cabling

●  Cisco StackPower: Cisco proprietary power stacking cables

●  Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling

●  Management console port: RJ-45-to-DB9 cable for PC connections

Power connectors ●  Customers can provide power to a switch by using either the internal power or StackPower from another member in the power stack. The connectors are located at the back of the switch.

●  Internal power supply connector: The internal power supply is an autoranging unit. The internal power supply supports input voltages between 100 and 240VAC. Use the supplied AC power cord to connect the AC power connector to an AC power outlet.

For the latest Cisco transceiver module compatibility information, refer to https://www.cisco.com/c/en/us/support/interfaces-modules/transceiver-modules/products-device-support-tables-list.html.

Management and standards support for Cisco Catalyst 3850 Series Switches

Table 13 shows management and standards support for the Cisco Catalyst 3850 Series.

Table 13.        Management and standards support for the Cisco Catalyst 3850 Series

Description Specification
Management BRIDGE-MIB

CISCO-AUTH-FRAMEWORK-MIB

CISCO-BGP4-MIB, BGP4-MIB

CISCO-BRIDGE-EXT-MIB

CISCO-BULK-FILE-MIB

CISCO-CABLE-DIAG-MIB

CISCO-CALLHOME-MIB

CISCO-CEF-MIB

CISCO-CIRCUIT-INTERFACE-MIB

CISCO-ENTITY-VENDORTYPE-OID-MIB

CISCO-CONTEXT-MAPPING-MIB

CISCO-DEVICE-LOCATION-MIB

CISCO-DHCP-SNOOPING-MIB

CISCO-EIGRP-MIB

CISCO-EMBEDDED-EVENT-MGR-MIB

CISCO-ENTITY-FRU-CONTROL-MIB

CISCO-ENTITY-SENSOR-MIB

ENTITY-MIB

CISCO-ERR-DISABLE-MIB

CISCO-CONFIG-COPY-MIB

CISCO-FLOW-MONITOR-MIB

CISCO-FTP-CLIENT-MIB

CISCO-HSRP-EXT-MIB

CISCO-HSRP-MIB

CISCO-IETF-ISIS-MIB

CISCO-IF-EXTENSION-MIB

CISCO-IGMP-FILTER-MIB

CISCO-CONFIG-MAN-MIB

CISCO-IP-CBR-METRICS-MIB

CISCO-IPMROUTE-MIB

CISCO-IP-STAT-MIB

CISCO-IP-URPF-MIB

CISCO-L2L3-INTERFACE-CONFIG-MIB

CISCO-LAG-MIB

CISCO-LICENSE-MGMT-MIB

CISCO-MAC-AUTH-BYPASS-MIB

CISCO-MAC-NOTIFICATION-MIB

CISCO-MDI-METRICS-MIB

CISCO-FLASH-MIB

CISCO-OSPF-MIB

CISCO-OSPF-TRAP-MIB

CISCO-PAE-MIB

CISCO-PAGP-MIB

CISCO-PIM-MIB

CISCO-PING-MIB

CISCO-PORT-QOS-MIB

CISCO-PORT-SECURITY-MIB

CISCO-PORT-STORM-CONTROL-MIB

CISCO-POWER-ETHERNET-EXT-MIB

CISCO-PRIVATE-VLAN-MIB

CISCO-PROCESS-MIB

CISCO-PRODUCTS-MIB

CISCO-RF-MIB

CISCO-RTP-METRICS-MIB

CISCO-RTTMON-MIB

CISCO-SMART-INSTALL-MIB

CISCO-SNMP-TARGET-EXT-MIB

CISCO-STACKMAKER-MIB

CISCO-MEMORY-POOL-MIB

CISCO-STP-EXTENSIONS-MIB

CISCO-SYSLOG-MIB

CISCO-TCP-MIB

CISCO-UDLDP-MIB

CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB

CISCO-VLAN-MEMBERSHIP-MIB

CISCO-VTP-MIB

EtherLike-MIB

HC-RMON-MIB

IEEE8021-PAE-MIB

IEEE8023-LAG-MIB

IF-MIB

IGMP-MIB

IGMP-STD-MIB

IP-FORWARD-MIB

IP-MIB

IPMROUTE-STD-MIB

LLDP-EXT-MED-MIB

LLDP-MIB

NOTIFICATION-LOG-MIB

OLD-CISCO-MEMORY-MIB

CISCO-CDP-MIB

POWER-ETHERNET-MIB

RMON2-MIB

RMON-MIB

SNMP-COMMUNITY-MIB

SNMP-FRAMEWORK-MIB

SNMP-MPD-MIB

SNMP-NOTIFICATION-MIB

SNMP-PROXY-MIB

SNMP-TARGET-MIB

SNMP-USM-MIB

SNMPv2-MIB

SNMP-VIEW-BASED-ACM-MIB

TCP-MIB

UDP-MIB

CISCO-IMAGE-MIB

CISCO-STACKWISE-MIB

AIRESPMACE-WIRELESS-MIB

CISCO-LWAPP-IDS-MIB

CISCO-LWAPP-AP-MIB

CISCO-LWAPP-CCX-RM-MIB

CISCO-LWAPP-CLIENT-ROAMING-MIB

CISCO-LWAPP-DOT11-CCX-CLIENT-DIAG-MIB

CISCO-LWAPP-DOT11-CCX-CLIENT-MIB

CISCO-LWAPP-DOT11-CLIENT-CCX-REPORTS-MIB

CISCO-LWAPP-DOT11-CLIENT-MIB

CISCO-LWAPP-DOT11-MIB

CISCO-LWAPP-DOWNLOAD-MIB

CISCO-LWAPP-LINKTEST-MIB

CISCO-LWAPP-MFP-MIB

CISCO-LWAPP-MOBILITY-EXT-MIB

CISCO-LWAPP-QOS-MIB

CISCO-LWAPP-REAP-MIB

CISCO-LWAPP-ROGUE-MIB

CISCO-LWAPP-RRM-MIB

CISCO-LWAPP-SI-MIB

CISCO-LWAPP-TSM-MIB

CISCO-LWAPP-WLAN-MIB

CISCO-LWAPP-WLAN-SECURITY-MIB

Standards IEEE 802.1as

IEEE 802.1s

IEEE 802.1w

IEEE 802.11

IEEE 802.1x

IEEE 802.1x-Rev

IEEE 802.3ad

IEEE 802.3af

IEEE 802.3at

IEEE 802.3bz

IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports

IEEE 802.1D Spanning Tree Protocol

IEEE 802.1p CoS prioritization

IEEE 802.1Qat Stream Reservation Protocol

IEEE 802.1Qav

IEEE 802.1Q VLAN

IEEE 802.3 10BASE-T specification

IEEE 802.3u 100BASE-TX specification

IEEE 802.3ab 1000BASE-T specification

IEEE 802.3z 1000BASE-X specification

RMON I and II standards

SNMPv1, SNMPv2c, and SNMPv3

Power supply specifications

Table 14 lists the power specifications for the Cisco Catalyst 3850 Series based on the kind of power supply used.

Table 14.        Power specifications for Cisco Catalyst 3850 Series

Description Specification
  PWR-C1-1100WAC PWR-C1-715WAC PWR-C1-350WAC PWR-C1-440WDC
Power supply rated maximum 1100W 715W 350W 440W
Total output BTU (Note: 1000 BTU/hr = 293W) 3793 BTU/hr, 1100W 2465 BTU/hr, 715W 1207BTU/hr, 350W 1517BTU/hr, 440W
Input-voltage range and frequency 115-240VAC,

50-60 Hz

100-240VAC,

50-60 Hz

100-240VAC,

50-60 Hz

-36VDC to -72VDC
Input current 12-6A 10-5A 4-2A <8A at -72VDC

<16A at -36VDC

Output ratings -56V at 19.64A -56V at 12.8A -56V at 6.25A -56V at 7.86A
Output holdup time 10 ms minimum at 102.5VAC 16.7 ms minimum at 100VAC 16.7 ms minimum at 100VAC > 2ms at -48VDC
Power-supply input receptacles IEC 320-C16

(IEC60320-C16)

IEC 320-C16

(IEC60320-C16)

IEC 320-C16 (IEC60320-C16) Terminal strip
Power cord rating 13A 13A 10A 20A at 100VDC
Physical specifications (H x W x D): 1.58 X 3.25 X 13.7 in

Weight: 3 lb
(1.4 kg)

(H x W x D): 1.58 X 3.25 X 12.20 in

Weight: 2.8 lb
(1.3 kg)

(H x W x D): 1.58 X 3.25 X 12.20 in

Weight: 2.6 lb
(1.2 kg)

(H x W x D): 1.58 X 3.25 X 12.20 in

Weight: 2.6 lb
(1.2 kg)

Operating temperature 23 to 113°F (-5 to 45°C)
Storage temperature -40 to 158°F (-40 to 70°C)
Relative humidity operating and nonoperating noncondensing 5 to 90% noncondensing
Altitude 10,000 ft. (3000 meters), up to 45°C
MTBF Calculated MTBF must be greater than 300,000 using Telcordia SR-332, Method 1, Case 3. Demonstrated MTBF is 500,000 hr (with 90% confidence level).
EMI and EMC compliance FCC Part 15 (CFR 47) Class A

ICES-003 Class A

EN 55022 Class A

CISPR 22 Class A

AS/NZS 3548 Class A

BSMI Class A (AC input models only)

VCCI Class A

EN 55024, EN300386, EN 50082-1, EN 61000-3-2, EN 61000-3-3

EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN 61000-6-1

Safety compliance UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CCC, CE Marking
LED indicators “AC OK”: Input power to the power supply is OK

“PS OK”: Output power from the power supply is OK

Power consumption of standalone Cisco Catalyst 3850 Series Switches

Table 15 shows power consumption of standalone Cisco Catalyst 3850 Series Switches based on Alliance for Telecommunications Industry Solutions (ATIS) testing using IMIX distribution stream traffic, with input voltage of 115VAC at 60 Hz and no PoE loading. The values given are the maximum possible power consumption numbers under the respective test scenarios.

Table 15.          Power consumptions (in watts) of standalone Cisco Catalyst 3850 Series

Model Uplink module Power consumption (W) (no more than)
0% traffic 10% traffic 100% traffic Weighted average
WS-C3850-12S C3850-NM-4-1G 85.84 85.89 86.75 86.0
WS-C3850-24S 104.48 104.25 105.12 104.4
WS-C3850-12S C3850-NM-2-10G 87.95 88.30 90.04 88.4
WS-C3850-24S 106.24 106.58 109.75 106.9
WS-C3850-24T C3850-NM-4-1G 83.47 82.86 83.76 83.04
WS-C3850-24P 86.81 86.22 87.11 86.40
WS-C3850-24U 81.5 81.4 82.1 81.5
WS-C3850-48T 117.74 116.62 117.59 116.89
WS-C3850-48P 125.35 124.15 125.15 124.43
WS-C3850-48F 130.10 128.91 129.85 129.18
WS-C3850-48U 114.8 114.7 115.6 114.8
WS-C3850-24T C3850-NM-2-10G 81.97 81.83 84.97 82.16
WS-C3850-24P 85.22 85.04 88.32 85.39
WS-C3850-24U 82.8 82.6 84.8 82.9
WS-C3850-48T 117.56 116.74 120.40 117.23
WS-C3850-48P 123.78 122.90 126.75 123.42
WS-C3850-48F 129.89 129.06 132.36 129.18
WS-C3850-48U 116.8 116.9 119.9 117.2
WS-C3850-48T C3850-NM-4-10G 120.56 120.28 127.24 121.02
WS-C3850-48P 129.59 129.64 135.96 130.27
WS-C3850-48F 137.57 137.06 143.77 137.81
WS-C3850-48U 119.9 121.2 127.7 121.5
WS-C3850-12XS 109.0 109.5 112.7 109.7
WS-C3850-24XU C3850-NM-8-10G 229.7 231.2 248.1 232.7
WS-C3850-12X48U 191.3 193.6 208.1 194.8
WS-C3850-24XS 183.6 185.3 205.5 187.2
WS-C3850-24XS C3850-NM-2-40G 159.2 161.1 177.0 162.5
WS-C3850-48XS None 267.0 268.3 288.1 270.1

Safety and compliance

Table 16.       Safety and compliance information for the Cisco Catalyst 3850 Series

Description Specification
Safety certifications UL 60950-1 Second Edition

CAN/CSA-C22.2 No. 60950-1 Second Edition

EN 60950-1 Second Edition

IEC 60950-1 Second Edition

NOM (obtained by partners and distributors)

Electromagnetic emissions certifications 47CFR Part 15 (CFR 47) Class A (FCC Part 15 Class A)

AS/NZS CISPR22 Class A

CISPR22 Class A

EN55022 Class A

ICES003 Class A

VCCI Class A

EN61000-3-2

EN61000-3-3

KN22 Class A

KCC

CNS13438 Class A

EN55024

CISPR24

KN24

Environmental Reduction of Hazardous Substances (ROHS) 5
Noise specifications Office Product Spec: 48dBA at 30°C (refer to ISO 7779)
Telco CLEI code

Warranty

The Cisco Catalyst 3850 Series Switches come with an E-LLW that includes NBD delivery of replacement hardware where available and 90 days of 8x5 Cisco TAC support.

Your formal warranty statement, including the warranty applicable to Cisco software, appears in the Cisco information packet that accompanies your Cisco product. We encourage you to review carefully the warranty statement shipped with your specific product before use.

Cisco reserves the right to refund the purchase price as its exclusive warranty remedy.

For further information about warranty terms, visit https://www.cisco.com/go/warranty. Table 17 provides information about the E-LLW.

Table 17.        E-LLW details

  Cisco E-LLW
Device covered Applies to Cisco Catalyst 3850 Series Switches.
Warranty duration As long as the original customer owns the product.
EoL policy In the event of discontinuance of product manufacture, Cisco warranty support is limited to 5 years from the announcement of discontinuance.
Hardware replacement Cisco or its service center will use commercially reasonable efforts to ship a replacement for NBD delivery, where available. Otherwise, a replacement will be shipped within 10 working days after receipt of the RMA request. Actual delivery times might vary depending on customer location.
Effective date Hardware warranty commences from the date of shipment to customer (and in case of resale by a Cisco reseller, not more than 90 days after original shipment by Cisco).
TAC support Cisco will provide during business hours, 8 hours per day, 5 days per week basic configuration, diagnosis, and troubleshooting of device-level problems for up to a 90-day period from the date of shipment of the originally purchased Cisco Catalyst 3850 product. This support does not include solution or network-level support beyond the specific device under consideration.
Cisco.com access Warranty allows guest access only to Cisco.com.

Licensing

The three feature sets available with all Cisco Catalyst 3850 Series Switches are:

  • LAN Base: Enterprise access Layer 2 switching features
  • IP Base: Enterprise access Layer 3 switching features
  • IP Services: Advanced enterprise Layer 3 switching (IPv4 and IPv6) features

The LAN Base feature set offers enhanced intelligent services that include comprehensive Layer 2 features, with up to 255 VLANs. The IP Base feature set provides entry-level enterprise services in addition to all LAN Base features, with 1K VLANs. IP Base also includes the support for wireless controller functionality (mobility agent and mobility controller role; additional access point license required for mobility controller role), routed access, smart operations, FNF, and so on. The IP Services feature set provides full enterprise services that include advanced Layer 3 features such as EIGRP, OSPF, BGP, PIM, and IPv6 routing such as OSPFv3 and EIGRPv6. All software feature sets support advanced security and MQC-based QoS.

The Cisco Catalyst 3850 Series Switches with LAN Base feature set can only stack with other Cisco Catalyst 3850 Series LAN Base switches. The same applies to IP Base and IP Services as well. A mixed stack of LAN Base switch with IP Base or IP Services feature set is not supported.

The 12-port and 24-port SFP+- and SFP-based models as well as the 48-port SFP+ model can only be ordered with IP Base or IP Services licenses. Therefore, in order to stack with LAN Base models, they need to be configured in LAN Base mode from the CLI.

Customers can transparently upgrade the software feature set in the Cisco Catalyst 3850 Series Switches through Cisco IOS Software CLI using the Right To Use (RTU)-based software upgrade process. Software activation enables the Cisco IOS Software feature sets. Based on the license’s type, Cisco IOS Software activates the appropriate feature set. License types can be changed, or upgraded, to activate a different feature set.

Access point license for Cisco Catalyst 3850 Series

An access point license is required for Cisco Catalyst 3850 Series Switches operating in mobility controller mode. No access point license is required for 3850 operating in mobility agent mode. This functionality is included in the IP Base feature set. Other devices that can act as mobility controller are the WLC 5760, WLC 5508, and WiSM2 wireless controllers. Access point licenses can be transferred only between two 3850 switches or between 3850 and 5760 controller and vice versa.

Software policy for Cisco Catalyst 3850 Series Switches

Customers with Cisco Catalyst LAN Base and IP Base software feature sets will be provided with maintenance updates and bug fixes designed to maintain the compliance of the software with published specifications, release notes, and industry standards compliance as long as the original end user continues to own or use the product or up to one year from the end-of-sale date for this product, whichever occurs earlier. Customers with licenses for our IP Services software images require a service support contract such as Cisco Smart Net Total Care Service to download updates. This policy supersedes any previous warranty or software statement and is subject to change without notice.

Cisco ONE Software

Cisco ONE Software for Access Switching is available for the Cisco Catalyst 3850 Series Switches.

Cisco ONE Software is a new way for customers to purchase and use our infrastructure software. It offers a simplified consumption model, centered on common customer scenarios in the data center, WANs, and LANs.

Cisco ONE Software and services provide customers with four primary benefits:

  • Software suites that address typical customer use scenarios at an attractive price
  • Investment protection of their software purchase through software services-enabled license portability
  • Access to ongoing innovation and new technology with Cisco Software Support Service (SWSS)
  • Flexible licensing models to smoothly distribute customer's software spend over time

For ordering information for Cisco ONE Software for the Cisco Catalyst 3850 Series Switches, go to https://www.cisco.com/c/en/us/products/software/one-access/switching-part-numbers.html.

Cisco and Partner Services

Enable the innovative, secure, intelligent edge in the Borderless Network Architecture using personalized services from Cisco and our partners. Through a discovery process that begins with understanding your business objectives, we help you integrate the next-generation Cisco Catalyst fixed switches into your architecture and incorporate network services onto that platform. Sharing knowledge and leading practices, we support your success every step of the way as you deploy, absorb, manage, and scale new technology.

Choose from a flexible suite of support services designed to meet your business needs and help you maintain high-quality network performance while controlling operational costs. (See Table 18.)

Table 18.       Technical services available for Cisco Catalyst 3850 Series Switches

Technical services
Cisco Smart Net Total Care Service

●  Around-the-clock, global access to the Cisco TAC

●  Unrestricted access to the extensive Cisco.com knowledge base and tools

●  Next-business-day, 8x5x4, 24x7x4, and 24x7x2 advance hardware replacement and onsite parts replacement and installation available

●  Ongoing operating system software updates within the licensed feature set

●  Proactive diagnostics and real-time alerts on Smart Call Home-enabled devices

Cisco Smart Foundation Service

●  NBD advance hardware replacement as available

●  Business hours access to SMB TAC (access levels vary by region)

●  Access to Cisco.com SMB knowledge base

●  Online technical resources through Smart Foundation Portal

●  Operating system software bug fixes and patches

Cisco SP Base Service

●  Around-the-clock, global access to the Cisco TAC

●  Registered access to Cisco.com

●  NBD, 8x5x4, 24x7x4, and 24x7x2 advance hardware replacement; return to factory option available 2

●  Ongoing operating system software updates 1

Cisco Focused Technical Support Services

●  Three levels of premium, high-touch services are available:

◦   Cisco High-Touch Operations Management Service

◦   Cisco High-Touch Technical Support Service

◦   Cisco High-Touch Engineering Service

●  Valid Cisco Smart Net Total Care or SP Base contracts on all network equipment are required

Notes

1Cisco operating system updates include the following: maintenance releases, minor updates, and major updates within the licensed feature set.

2 Advance hardware replacement is available in various service-level combinations. For example, 8x5xNBD indicates that shipment will be initiated during the standard 8-hour business day, 5 days a week (the generally accepted business days within the relevant region), with NBD delivery. Where NBD is not available, same day ship is provided. Restrictions apply; for details, review the appropriate service descriptions.

Ordering Information

Table 19 lists ordering information for the Cisco Catalyst 3850 Series. To place an order, visit the Cisco Ordering homepage at https://www.cisco.com/en/US/ordering/or13/or8/order_customer_help_how_to_order_listing.html.

Table 19.       Cisco Catalyst 3850 Series ordering information

Product number Description
Cisco Catalyst 3850 Series
WS-C3850-24T-L Stackable 24 10/100/1000 Ethernet ports, with 350WAC power supply

1 RU, LAN Base feature set (StackPower cables need to be purchased separately)

WS-C3850-48T-L Stackable 48 10/100/1000 Ethernet ports, with 350WAC power supply

1 RU, LAN Base feature set (StackPower cables need to be purchased separately)

WS-C3850-24P-L Stackable 24 10/100/1000 Ethernet PoE+ ports, with 715WAC power supply

1 RU, LAN Base feature set (StackPower cables need to be purchased separately)

WS-C3850-24U-L Stackable 24 10/100/1000 Ethernet UPOE ports, with 1100WAC power supply

1 RU, LAN Base feature set (StackPower cables need to be purchased separately)

WS-C3850-48P-L Stackable 48 10/100/1000 Ethernet PoE+ ports, with 715WAC power supply

1 RU, LAN Base feature set (StackPower cables need to be purchased separately)

WS-C3850-48F-L Stackable 48 10/100/1000 Ethernet PoE+ ports, with 1100WAC power supply

1 RU, LAN Base feature set (StackPower cables need to be purchased separately)

WS-C3850-48U-L Stackable 48 10/100/1000 Ethernet UPOE ports, with 1100WAC power supply

1 RU, LAN Base feature set (StackPower cables need to be purchased separately)

WS-C3850-24T-S Stackable 24 10/100/1000 Ethernet ports, with 350WAC power supply

1 RU, IP Base feature set

WS-C3850-48T-S Stackable 48 10/100/1000 Ethernet ports, with 350WAC power supply

1 RU, IP Base feature set

WS-C3850-24P-S Stackable 24 10/100/1000 Ethernet PoE+ ports, with 715WAC power supply

1 RU, IP Base feature set

WS-C3850-24U-S Stackable 24 10/100/1000 Ethernet UPOE ports, with 1100WAC power supply

1 RU, IP Base feature set

WS-C3850-48P-S Stackable 48 10/100/1000 Ethernet PoE+ ports, with 715WAC power supply

1 RU, IP Base feature set

WS-C3850-48F-S Stackable 48 10/100/1000 Ethernet PoE+ ports, with 1100WAC power supply

1 RU, IP Base feature set

WS-C3850-48U-S Stackable 48 10/100/1000 Ethernet UPOE ports, with 1100WAC power supply

1 RU, IP Base feature set

WS-C3850-24T-E Stackable 24 10/100/1000 Ethernet ports, with 350WAC power supply

1 RU, IP Services feature set

WS-C3850-48T-E Stackable 48 10/100/1000 Ethernet ports, with 350WAC power supply

1 RU, IP Services feature set

WS-C3850-24P-E Stackable 24 10/100/1000 Ethernet PoE+ ports, with 715WAC power supply

1 RU, IP Services feature set

WS-C3850-24U-E Stackable 24 10/100/1000 Ethernet UPOE ports, with 1100WAC power supply

1 RU, IP Services feature set

WS-C3850-48P-E Stackable 48 10/100/1000 Ethernet PoE+ ports, with 715WAC power supply

1 RU, IP Services feature set

WS-C3850-48F-E Stackable 48 10/100/1000 Ethernet PoE+ ports, with 1100WAC power supply
1 RU, IP Services feature set
WS-C3850-48U-E Stackable 48 10/100/1000 Ethernet UPOE ports, with 1100WAC power supply

1 RU, IP Services feature set

WS-C3850-12X48U-L Stackable 48 10/100/1000 with 12 100Mbps/1/2.5/5/10 Gbps UPOE Ethernet ports, with 1100W AC power supply

1RU, LAN Base feature set

WS-C3850-12X48U-S Stackable 48 10/100/1000 with 12 100Mbps/1/2.5/5/10 Gbps UPOE Ethernet ports, with 1100W AC power supply

1RU, IP Base feature set

WS-C3850-12X48U-E Stackable 48 10/100/1000 with 12 100Mbps/1/2.5/5/10 Gbps UPOE Ethernet ports, with 1100W AC power supply

1RU, IP Services feature set

WS-C3850-24XU-L  Stackable 24 100Mbps/1/2.5/5/10 Gbps UPOE Ethernet ports, with 1100W AC power supply

1RU, LAN Base feature set

WS-C3850-24XU-S Stackable 24 100Mbps/1/2.5/5/10 Gbps UPOE Ethernet ports, with 1100W AC power supply

1RU, IP Base feature set

WS-C3850-24XU-E Stackable 24 100Mbps/1/2.5/5/10 Gbps UPOE Ethernet ports, with 1100W AC power supply

1RU, IP Services feature set

WS-C3850-12S-S Stackable 12 SFP Ethernet ports, with 350WAC power supply

1 RU, IP Base feature set

WS-C3850-12S-E Stackable 12 SFP Ethernet ports, with 350WAC power supply

1 RU, IP Services feature set

WS-C3850-24S-S Stackable 24 SFP Ethernet ports, with 350WAC power supply

1 RU, IP Base feature set

WS-C3850-24S-E Stackable 24 SFP Ethernet ports, with 350WAC power supply

1 RU, IP Services feature set

WS-C3850-12XS-S Stackable 12 SFP+ Ethernet ports, with 350WAC power supply

1 RU, IP Base feature set

WS-C3850-12XS-E Stackable 12 SFP+ Ethernet ports, with 350WAC power supply

1 RU, IP Services feature set

WS-C3850-24XS-S Stackable 24 SFP+ Ethernet ports, with 715WAC power supply

1 RU, IP Base feature set

WS-C3850-24XS-E Stackable 24 SFP+ Ethernet ports, with 715WAC power supply

1 RU, IP Services feature set

WS-C3850-48XS-S Standalone, 48 SFP+ and 4 QSFP+ Ethernet ports, with 750WAC front-to-back power supply

1 RU, IP Base feature set

WS-C3850-48XS-E Standalone, 48 SFP+ and 4 QSFP+ Ethernet ports, with 750WAC front-to-back power supply

1 RU, IP Services feature set

WS-C3850-48XS-F-S Standalone, 48 SFP+ and 4 QSFP+ Ethernet ports, with 750WAC back-to-front power supply

1 RU, IP Base feature set

WS-C3850-48XS-F-E Standalone, 48 SFP+ and 4 QSFP+ Ethernet ports, with 750WAC back-to-front power supply

1 RU, IP Services feature set

Cisco Catalyst 3850 bundles
WS-C3850-24PW-S Cisco Catalyst 3850 24-port PoE IP Base with 5 access point license
WS-C3850-48PW-S Cisco Catalyst 3850 48-port PoE IP Base with 5 access point license
WS-C3850-24UW-S Cisco Catalyst 3850 24 Port UPOE with 5 access point licenses IP Base
WS-C3850-48W-S Cisco Catalyst 3850 48 Port PoE with 5 access point licenses IP Base
WS-C3850-48UW-S Cisco Catalyst 3850 48 Port UPOE with 5 access point licenses IP Base
WS-C3850-24XUW-S Cisco Catalyst 3850 24 Port UPOE with 24 100Mbps/1/2.5/5/10 Gbps and 5 access point licenses IP Base
WS-C3850-12X48UW-S Cisco Catalyst 3850 48 Port UPOE with 12 100Mbps/1/2.5/5/10 Gbps and 5 access point licenses IP Base
WS-C3850-16XS-S Cisco Catalyst 3850 12 SFP+ port stackable model, with C3850-NM-4-10G module and 350WAC power supply. 1 RU, IP Base feature set
WS-C3850-16XS-E Cisco Catalyst 3850 12 SFP+ port stackable model, with C3850-NM-4-10G module and 350WAC power supply. 1 RU, IP Services feature set
WS-C3850-32XS-S Cisco Catalyst 3850 24 SFP+ port stackable model, with C3850-NM-8-10G module and 715WAC power supply. 1 RU, IP Base feature set
WS-C3850-32XS-E Cisco Catalyst 3850 24 SFP+ port stackable model, with C3850-NM-8-10G module and 715WAC power supply. 1 RU, IP Services feature set
Network modules for the Cisco Catalyst 3850 Series
C3850-NM-4-1G= 4 x Gigabit Ethernet network module spare
C3850-NM-2-10G= 4 x Gigabit Ethernet/2 x 10 Gigabit Ethernet network module spare
C3850-NM-BLANK= Network module blank spare
C3850-NM-4-10G= 4 x Gigabit Ethernet/4 x 10 Gigabit Ethernet network module spare
C3850-NM-8-10G= 8 x Gigabit Ethernet/8 x 10 Gigabit Ethernet network module spare
C3850-NM-2-40G= 2 x 40 Gigabit Ethernet network module spare
Software licenses
C3850-12-S-E Cisco Catalyst 3850 12-port IP Base to IP Services RTU paper license
C3850-24-L-S Cisco Catalyst 3850 24-port Switch LAN Base to IP Base RTU paper license
C3850-48-L-S Cisco Catalyst 3850 48-port Switch LAN Base to IP Base RTU paper license
C3850-24-L-E Cisco Catalyst 3850 24-port LAN Base to IP Services RTU paper license
C3850-48-L-E Cisco Catalyst 3850 48-port LAN Base to IP Services RTU paper license
C3850-24-S-E Cisco Catalyst 3850 24-port IP Base to IP Services RTU paper license
C3850-48-S-E Cisco Catalyst 3850 48-port IP Base to IP Services RTU paper license
L-C3850-24-L-S Cisco Catalyst 3850 24-port LAN Base to IP Base RTU electronic license
L-C3850-48-L-S Cisco Catalyst 3850 48-port LAN Base to IP Base RTU electronic license
L-C3850-24-L-E Cisco Catalyst 3850 24-port LAN Base to IP Services RTU electronic license
L-C3850-48-L-E Cisco Catalyst 3850 48-port LAN Base to IP Services RTU electronic license
L-C3850-24-S-E Cisco Catalyst 3850 24-port IP Base to IP Services RTU electronic license
L-C3850-48-S-E Cisco Catalyst 3850 48-port IP Base to IP Services RTU electronic license
L-C3850-12-S-E Cisco Catalyst 3850 12-port IP Base to IP Services RTU electronic license
Access point licenses
L-LIC-CT3850-UPG Primary upgrade license SKU for Cisco 3850 wireless controller (e-delivery)
L-LIC-CTIOS-1A 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery)
LIC-CT3850-UPG Primary upgrade license SKU for Cisco 3850 wireless controller (paper license)
LIC-CTIOS-1A 1 access point adder license for the Cisco IOS Software based wireless controller (paper license)
Power supplies and fan for the Cisco Catalyst 3850 Series
PWR-C1-350WAC= 350WAC power supply spare
PWR-C1-715WAC= 715WAC power supply spare
PWR-C1-1100WAC= 1100WAC power supply spare
PWR-C1-440WDC= 440WDC power supply spare
PWR-C1-BLANK= Power supply blank spare
PWR-C3-750WAC-R= 750WAC power supply spare front-to-back airflow for 48XS
PWR-C3-750WAC-F= 750WAC power supply spare back-to-front airflow for 48XS
PWR-C3-750WDC-R= 750WDC power supply spare front-to-back airflow for 48XS
PWR-C3-750WDC-F= 750WDC power supply spare back-to-front airflow for 48XS
FAN-T3-R= Fan module spare front-to-back airflow for 48XS
FAN-T3-F= Fan module spare back-to-front airflow for 48XS
C3850-FAN-T1= Cisco Catalyst 3850 and WLC 5760 Type 1 Fan Module
StackWise-480 and StackPower cables for the Cisco Catalyst 3850 Series
STACK-T1-50CM= Cisco StackWise-480 50cm stacking cable spare
STACK-T1-1M= Cisco StackWise-480 1m stacking cable spare
STACK-T1-3M= Cisco StackWise-480 3m stacking cable spare
CAB-SPWR-30CM= Cisco Catalyst 3850 StackPower cable 30cm spare
CAB-SPWR-150CM= Cisco Catalyst 3850 StackPower cable 150cm spare
Spare power cords for the Cisco Catalyst 3850 Series
CAB-TA-NA= AC power cord for Cisco Catalyst 3850 (North America)
CAB-TA-AP= AC power cord for Cisco Catalyst 3850 (Australia)
CAB-TA-AR= AC power cord for Cisco Catalyst 3850 (Argentina)
CAB-TA-SW= AC power cord for Cisco Catalyst 3850 (Switzerland)
CAB-TA-UK= AC power cord for Cisco Catalyst 3850 (United Kingdom)
CAB-TA-JP= AC power cord for Cisco Catalyst 3850 (Japan)
CAB-TA-250VAC-JP= Japan 250VAC power cord for Cisco Catalyst 3850 (Japan)
CAB-TA-EU= AC power cord for Cisco Catalyst 3850 (Europe)
CAB-TA-IT= AC power cord for Cisco Catalyst 3850 (Italy)
CAB-TA-IN= AC power cord for Cisco Catalyst 3850 (India)
CAB-TA-CN= AC power cord for Cisco Catalyst 3850 (China)
CAB-TA-DN= AC power cord for Cisco Catalyst 3850 (Denmark)
CAB-TA-IS= AC power cord for Cisco Catalyst 3850 (Israel)
CAB-ACBZ-12A= AC power cord for Cisco Catalyst 3850 (Brazil), 12A/125V BR-3-20 plug up to 12A
CAB-ACBZ-10A= AC power cord for Cisco Catalyst 3850 (Brazil), 10A/250V BR-3-10 plug up to 10A
CAB-C15-CBN Cabinet jumper power cord, 250 VAC 13A, C14-C15 connectors
Spare accessory and rack-mount kits for the Cisco Catalyst 3850 Series
C3850-ACC-KIT= Accessory kit for Cisco Catalyst 3850 Series
C3850-RAC-KIT= Rack mount kit for Cisco Catalyst 3850 Series
C3850-4PT-KIT= Extension rails and brackets for four-point mounting for Cisco Catalyst 3850 Series



Cisco Catalyst 3850 12 Port 10G Fiber Switch IP Base # WS-C3850-12XS-S
